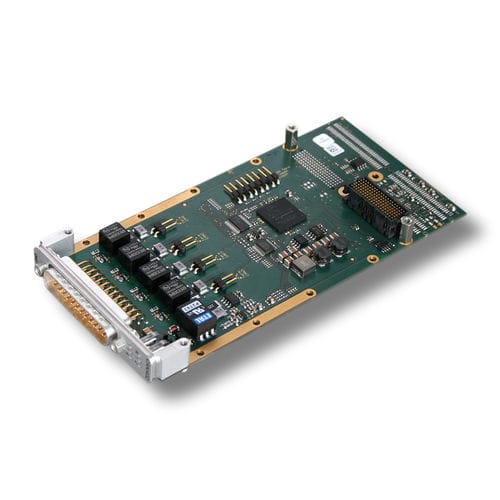

XMC interface card XMC-CAN/402-4-FD
FPGACANindustrial

XMC interface card
XMC interface card
Add to favorites
Compare this product


Characteristics

Bus standard
XMC, FPGA
Bus
CAN
Applications
industrial

Description

XMC Board with 4 CAN FD Interfaces via DSUB 25, optional IRIG-B XMC Board with Altera® FPGA for 4x CAN FD via DSUB25 • High-Speed CAN FD interfaces according to ISO 11898-2, up to 5 Mbit/s • Bus mastering and local data management by FPGA (esdACC) • PCI bus according to PCI Local Bus Specification 3.0 • Selectable CAN termination on board • Supports MSI (Message Signaled Interrupts) • All I/O signals via 25-pin DSUB in the front panel • Optional IRIG-B input Wide Range of OS Support and Advanced CAN Diagnostic • Software drivers for Windows® and Linux® included free of charge • Optional CAN layer 2 software drivers for real-time operating systems • CANopen®, J1939 and ARINC 825 protocol libraries • ISO 16845:2004 certified esd Advanced CAN Core (esdACC) technology • High resolution hardware timestamps Customization on Request • Extended temperature range: -40° C … +75° C • Error simulation support • All signals via Rear I/O Drivers are available for several operating systems.
