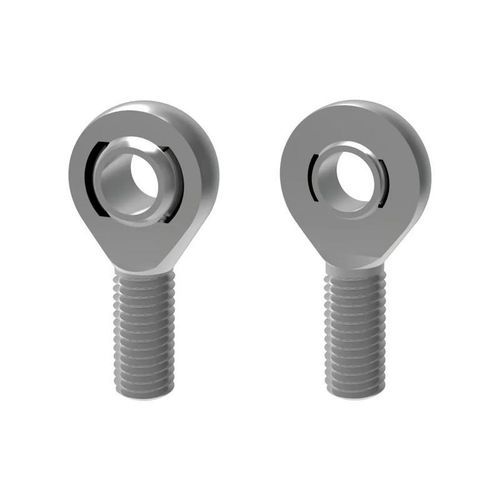

Male rod end SRR3550

steelwith ball bearinghigh-resistance

Product Details
These Male Heavy Duty Rods end with Integral Spherical Plain Bearing and are used to connect two rods, cables, or other components. They are made up of a threaded male stud on one end and an integrated spherical plain bearing on the other. The spherical plain bearing allows for angular misalignment and accepts radial and axial loads, making it ideal for applications requiring flexibility and load-carrying capabilities.

The rod end ball moves on a plastic bearing shell made of a glass fibre-filled nylon/Teflon composite. This design ensures a maintenance-free rod end. Heavy-duty plain-bearing rod ends feature less initial movement friction and almost no clearance. Another advantage of the plastic substance is that it can absorb numerous foreign particles, preventing harm.

It is threaded into the corresponding component. It can also endure temperatures ranging from -30C to +60C without losing load capacity. Higher temperatures lower load capacity. It is utilised in steering systems, suspension systems, and linkages for automotive, construction, and industrial automation applications.

• It is ideal for applications requiring flexibility and load-carrying capabilities.

• Heavy-duty plain-bearing rod ends feature less initial movement friction and almost no clearance.

• It can endure temperatures ranging from -30C to +60C without losing load capacity.

Material
Steel
Series Code
SRR3553, SRR3550

Available Variants (Selection)

• Thread hand: Left Hand, Right Hand
• d1 (Ball Inside Diameter): 5.0, 6.0, 8.0, 10.0, 12.0, 14.0, 15.0, 16.0, 17.0, 18.0, 20.0, 22.0, 25.0, 30.0, 35.0, 40.0, 45.0, 50.0, 60.0
• l1 (Distance End to Centre): 33.0, 36.0, 42.0, 48.0, 54.0, 60.0, 63.0, 66.0, 69.0, 72.0, 78.0, 84.0, 94.0, 110.0, 140.0, 145.0, 150.0, 163.0, 165.0, 185.0, 195.0, 210.0, 225.0
• d2 (Rod End Thread): M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M30, M36, M39, M42, M45, M52, M60
• d3 (Spherical Ball Diameter): 10.0, 11.11, 12.70, 13.0, 15.87, 16.0, 18.0, 19.05, 22.0, 22.22, 25.0, 25.40, 28.57, 29.0, 31.75, 34.92, 35.5, 38.10, 40.7, 42.85, 47.0, 50.75, 50.80, 53.0, 60.0, 66.0, 80.0
• l2 (Thread Length): 20.0, 22.0, 25.0, 29.0, 33.0, 36.0, 40.0, 44.0, 47.0, 51.0, 57.0, 66.0, 92.0, 94.0, 98.0, 99.0, 100.0, 110.0, 120.0, 125.0, 140.0
• d4 (Housing Outside Diameter): 18.0, 20.0, 23.0, 24.0, 28.0, 32.0, 36.0, 38.0, 42.0, 44.0, 46.0, 50.0, 51.0, 54.0, 60.0, 62.0, 70.0, 82.0, 92.0, 102.0, 112.0, 135.0

Characteristics / Technical Specifications

• Material: Steel
• Maintenance-free rod end with glass fibre-filled nylon/Teflon composite bearing shell
• Absorbs foreign particles to prevent damage
• Temperature range: -30°C to +60°C (higher temperatures reduce load capacity)
• Applications: Steering systems, suspension systems, linkages in automotive, construction, and industrial automation
• Series Code: SRR3553, SRR3550
