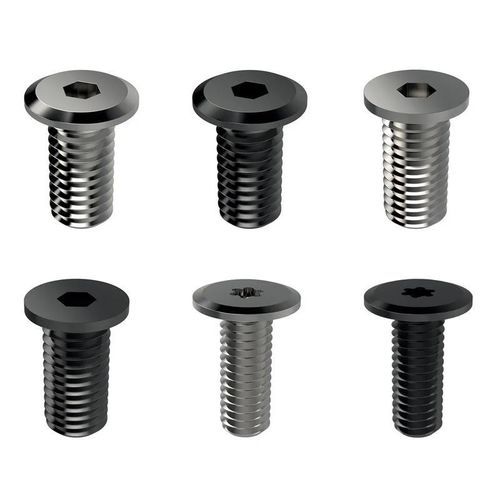

Joining screw SRP0208

fasteningextra-low-profile headhex socket

Product Details
This range of Cap Screws are available in a choice of hexagonal drive or Torx drive. Hexagonal drives are ideal for precision assembly and are ideally used where less surface area is available. Torx drives provide a positive-engaging, fast-locating technique for transmitting drive torque with less necessary downward pressure. Available in a choice of two low head options: ultra low head and extra low head.

• The Ultra Low Head options help reduce the screw's overall head height space, which means no countersinking is required, unlike flat head screws.
• The Extra Low Head option has an extremely low profile and does not need a countersunk location hole. The lack of necessity for the countersink allows for thinner materials to be used, saving weight. These screws are suitable for machine and equipment applications, with minimal clearance.

• The screws are made from austenitic Stainless Steel that provides good resistance to corrosion and machinability.

• The material is a popular choice for construction and automotive applications.

• Cap Screws are commonly used with Threaded Captive Washers (sold separately).

Material Options
303 Stainless Steel, Blackened Stainless 303, Blackened Stainless 316, 316 Stainless Steel
Series Code
SRP0208, SRP0209B4, SRP0209B2, SRP0209A4, SRP0209A2, SRP0208B4, SRP0208B2, SRP0208A4, SRP0207B4, SRP0207B2, SRP0207A4, SRP0208A2, SRP0207A2

Available Variants (Selection)

• d1 (Thread Size): M2, M2.5, M3, M4, M5, M6, M8, M10
• d2 (Head Diameter): 4.0, 5.0, 6.0, 8.0, 9.0, 10.0, 12.0, 13.0, 14.0, 16.0, 18.0, 20.0, 25.0, 30.0, 35.0, 40.0
• h1 (Head Height): 0.5, 0.6, 0.8, 0.9, 1.0, 1.2, 1.5, 1.8
• Drive Type: Hex Drive, Torx Drive

Typical Applications

• Machine and equipment assembly
• Construction
• Automotive

Characteristics / Technical Specifications

• Material: 303 Stainless Steel, Blackened Stainless 303, Blackened Stainless 316, 316 Stainless Steel
• Drive Type: Hex Drive, Torx Drive
• Head Type: Ultra Low Head, Extra Low Head
• Thread Sizes: M2, M2.5, M3, M4, M5, M6, M8, M10
• Head Diameter (d2): 4.0 mm to 40.0 mm (varies by variant)
• Head Height (h1): 0.5 mm to 1.8 mm (varies by variant)
• Corrosion resistance: Yes (austenitic stainless steel)
• Machinability: Good
• Commonly used with Threaded Captive Washers (sold separately)
