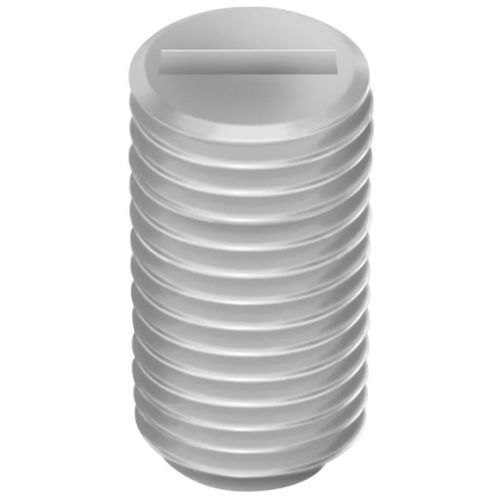

Polyamide headless screw SR1957

nyloncorrosion-resistantchemical-resistant

Product Details
Set Screws, commonly known as a Plastic Grub Screw, are used to secure objects by applying pressure or friction with or against another object, like fixing a pulley or a gear to a shaft.

Our Slotted Screw offer is made from Natural Nylon 6/6, and available in a wide range of thread size, thread lengths and slot sizes. Plastic Set Screws are ideal when the screw head should sit proud of the work-piece in application.

• Corrosion free and resistant to most chemicals
• Refer to standard DIN 551 for guidance purposes only
• Meets dimensional tolerance of NFE 25-125, DIN 912
• Flame resistance rating: UL94 V2.

Available Thread Sizes

• 1/2-14
• 1/4-20
• M10
• M10 x 1.5
• M12
• M12 x 1.75
• M3
• M4
• M4 x 0.7
• M5
• M5 x 0.8
• M6
• M6 x 1.0
• M8
• M8 x 1.25

Available Thread Lengths (Metric)

• 4.0 mm
• 5.0 mm
• 6.0 mm
• 6.4 mm
• 8.0 mm
• 10.0 mm
• 12.0 mm
• 14.4 mm
• 16.0 mm
• 20.0 mm
• 25.0 mm
• 30.0 mm
• 40.0 mm
• 50.0 mm
• 60.0 mm

Available Thread Lengths (Imperial)

• 0.157 in
• 0.197 in
• 0.236 in
• 0.250 in
• 0.315 in
• 0.394 in
• 0.472 in
• 0.565 in
• 0.63 in
• 0.787 in
• 0.984 in
• 1.181 in
• 1.575 in
• 1.969 in
• 2.362 in

Material
Natural Nylon 6/6 (Polyamide 66)

Colour
Natural

Flame Resistance
UL94 V2

Standards
DIN 551, NFE 25-125, DIN 912

Typical Applications

• Securing pulleys or gears to shafts
• Applications where the screw head should sit proud of the work-piece

Characteristics / Technical Specifications

• Product type: Plastic Slotted Set Screw / Plastic Grub Screw
• Material: Natural Nylon 6/6 (Polyamide 66)
• Corrosion free
• Chemical resistance: Resistant to most chemicals
• Flame resistance: UL94 V2
• Thread sizes: Multiple (see above)
• Thread lengths: Multiple (see above)
• Meets dimensional tolerance: NFE 25-125, DIN 912
• Guidance standard: DIN 551
