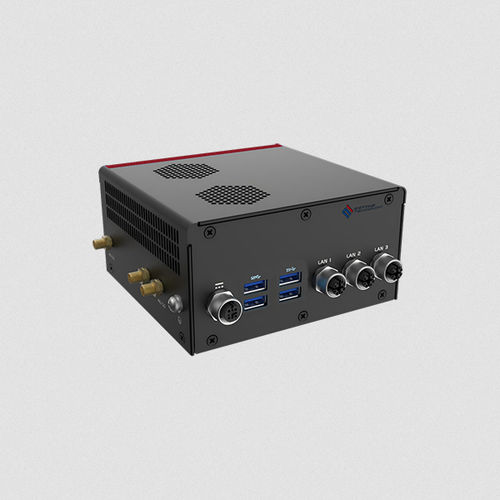

Expansion PC NPC-7532

artificial intelligenceAImobile

Product Overview
Redefining the Boundaries of Robotic Intelligence
At the heart of this product lies the NVIDIA® Jetson AGX THOR module, boasting a peak performance of 2070 TOPS. It can effortlessly handle multiple HD video streams, run complex deep learning models, and perform real-time environmental perception and decision-making. With support for up to 128 GB of memory, it ensures smooth and stable operation for large-scale AI applications and massive data processing, completely eliminating performance bottlenecks and empowering robots to tackle unprecedented intelligent challenges.

Design Philosophy
Streamlined Design, Focused on Core Scenarios
This product is targeted at the field of artificial intelligence robots, but its design philosophy places greater emphasis on high integration and deployment flexibility. Through refined interface configuration, it achieves structural compactness while maintaining core computing power. It is particularly suitable for robot forms with limited space or as a pure computing unit in the main control system. This enables customers to more precisely allocate their valuable computing resources to the core chain of perception and decision-making, optimizing the overall system cost and structural design.

Interface & Connectivity
Ensuring Critical Connections, Demonstrating Efficient Design
The interface design of this product has been optimized; it is streamlined yet strikes at the heart of every key requirement:

• High-Speed Network Backbone: Equipped with one Gigabit and two optional 10-Gigabit (2.5G/5G/10G) M12 A-coded connectors. This ensures high-speed, low-latency data exchange with the cloud, other devices, or internal subsystems, providing reliable support for massive data uploads and collaborative operations.
• Sufficient Expansion Capability: The provided four USB 3.2 Type-A and one Type-C port offer ample room for connecting critical perception peripherals such as high-definition cameras, LiDAR, and industrial cameras, fully meeting the access needs of the core perception layer.
• Seamless Wireless Connectivity: Integrated Wi-Fi 5/6 and 4G/5G modules ensure continuous network connectivity and remote control capability for the robot during mobile operation.

Ruggedness & Reliability
Designed for Demanding Environments
Manufactured in strict compliance with automotive-grade standards, the product features a wide-range DC 9~36V power supply with over-voltage and over-current protection, allowing it to adapt to power fluctuations common in vehicle and factory settings. Combined with the robust interface design (like M12 connectors), it ensures stable and long-lasting operation in space-constrained and variable environments typical for mobile robots, significantly improving the Mean Time Between Failures (MTBF) of the entire system.

Features

• The Jetson AGX THOR module is adopted
• Supports up to 128GB Memory and 2070TOPS
• Supports up to 14-core Arm® Neoverse®-V3AE 64-bit
• 1*GbE, 2*LAN (2.5G/5G/10G selectable)
• 4 x USB3.2 Type-A, 1 x USB3.2 Type-C
• Supports WiFi, Bluetooth, 4G/5G
• Support TPM 2.0
• Automotive-grade equipment
• DC 9~36V wide voltage power supply, overcurrent and overvoltage protection

Certifications

• CE
• FCC

Specifications

• System
  • Processor: 12-core Arm® Neoverse®-V3AE 64-bit, 14-core Arm® Neoverse®-V3AE 64-bit
  • GPU: 1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 6 TPCs, 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs
  • NPU: 1200 Sparse FP4 TFLOPs, 600 Sparse/300 Dense FP8 TFLOPs, 2070 Sparse FP4 TFLOPs, 1035 Sparse/500 Dense FP8 TFLOPs
  • Memory: 64GB/128GB
  • Storage: M.2 M Key 2280 NVMe
  • LAN: 5 x M12 aviation head, 10/100/1000 MBPS, 2*M12 aviation head (2.5G/5G/10G selectable)
  • Audio: 1 x 3.5mm Combo Jack, 1 x 12-pin vehicle connector: 4 x DMIC, 2 x 5W AMP
  • Display: NVIDIA Blackwell GPU, Output, 2 x HDMI2.1, Up to 4096 x 2160 @60Hz
  • USB: 4 x USB3.2 Type-A, 1 x USB3.2 Type-C
  • LED: 9 x LED (1x power supply, 1x hard disk indicator light, 7x network port light)
  • Button: 1 x power button, 1 x Recovery button
  • TPM: TPM 2.0
  • Watchdog: 255 levels of programmable seconds per minute
• OS
  • OS Support: Ubuntu24.04 (Jetpack7.0)
• Power
  • Power Input: 9~36V DC IN
• Mechanical
  • Dimensions: 130x125x70mm
  • Net Weight: kg (not specified)
• Environment
  • Operating Temp.: -25~60℃ (-13~140 °F) w/ 0.7m/s airflow
  • Storage Temp.: -40~85℃ (-40~185 °F)
  • Humidity: 10% to 90% no condensation
  • Shock: With SSD solid-state drive: Operating state, 2Grs@5~500Hz, IEC 60068-2-64
  • Vibration: With SSD solid-state drive: working state, 15G@11ms half sine wave
  • EMC: CE/FCC
