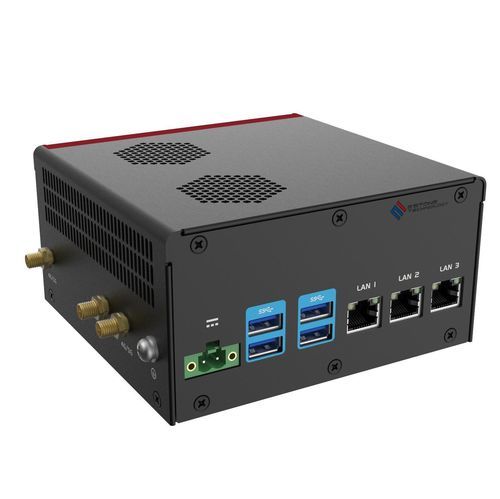

Expansion PC NPC-7512

artificial intelligenceAIdesktop

Product Overview
At the heart of this product lies the NVIDIA® Jetson AGX THOR module, boasting a peak performance of 2070 TOPS. It can effortlessly handle multiple HD video streams, run complex deep learning models, and perform real-time environmental perception and decision-making. With support for up to 128 GB of memory, it ensures smooth and stable operation for large-scale AI applications and massive data processing, completely eliminating performance bottlenecks and empowering robots to tackle unprecedented intelligent challenges.

Design Philosophy
This product is targeted at the field of artificial intelligence robots, but its design philosophy places greater emphasis on high integration and deployment flexibility. Through refined interface configuration, it achieves structural compactness while maintaining core computing power. It is particularly suitable for robot forms with limited space or as a pure computing unit in the main control system. This enables customers to more precisely allocate their valuable computing resources to the core chain of perception and decision-making, optimizing the overall system cost and structural design.

Refined Interface Configuration
- Network Connectivity: Equipped with 1 Gigabit RJ45 and 2 optional 10-Gigabit RJ45 ports (2.5G/5G/10G selectable) to meet high-speed data transmission requirements.
- Expansion Capability: 4 USB 3.2 Type-A and 1 Type-C ports provide sufficient peripheral connection capacity.
- Wireless Communication: Integrated WiFi 5/6 and 4G/5G modules ensure stable device connectivity in various environments.

Reliable Quality Assurance
Adopting industrial-grade reliability standards, it supports a wide voltage range of 9~36V for power supply, and is equipped with overvoltage and overcurrent protection mechanisms to ensure the stable operation of the equipment in complex industrial environments. The streamlined design not only reduces the complexity of the system but also enhances the overall reliability.

Features

• The Jetson AGX THOR module is adopted
• Supports up to 128GB Memory and 2070TOPS
• Supports up to 14-core Arm® Neoverse®-V3AE 64-bit
• 1*GbE, 2*LAN (2.5G/5G/10G selectable)
• 4 x USB3.2 Type-A, 1 x USB3.2 Type-C
• Supports WiFi, Bluetooth, 4G/5G • Supports TPM 2.0
• Industrial-grade equipment
• DC 9~36V wide voltage power supply, overcurrent and overvoltage protection

Specifications

• Processor: 12-core Arm® Neoverse®-V3AE 64-bit, 14-core Arm® Neoverse®-V3AE 64-bit
• GPU: 1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 6 TPCs, 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores Multi-Instance GPU (MIG) with 10 TPCs
• NPU: 1200 Sparse FP4 TFLOPs, 600 Sparse/300 Dense FP8 TFLOPs, 2070 Sparse FP4 TFLOPs, 1035 Sparse/500 Dense FP8 TFLOPs
• Memory: 64GB/128GB
• Storage: M.2 M Key 2280 NVMe
• LAN: 1 x RJ45, 10/100/1000Mbps; 2 x RJ45 (2.5G/5G/10G optional)
• Audio: 1 x 3.5mm Combo Jack; 1 x 12-pin vehicle connector: 4 x DMIC, 2 x 5W AMP
• Display: NVIDIA Blackwell GPU Output, 2 x HDMI2.1, Up to 4096 x 2160 @60Hz
• USB: 4 x USB3.2 Type-A, 1 x USB3.2 Type-C
• LED: 9 x LED (1x power supply, 1x hard disk indicator light, 7x network port light)
• Button: 1 x power button, 1 x Recovery button
• TPM: TPM 2.0
• Watchdog: 255 levels of programmable seconds per minute
• OS Support: Ubuntu24.04 (Jetpack7.0)
• Power Input: 9~36V DC IN
• Dimensions: 130x125x70mm
• Net Weight: kg
• Operating Temp.: -25~60℃ (-13~140 °F) w/ 0.7m/s airflow
• Storage Temp.: -40~85℃ (-40~185 °F)
• Humidity: 10% to 90% no condensation
• Shock: With SSD solid-state drive: Operating state, 2Grs@5~500Hz, IEC 60068-2-64
• Vibration: With SSD solid-state drive: working state, 15G@11ms half sine wave
• EMC: CE/FCC
