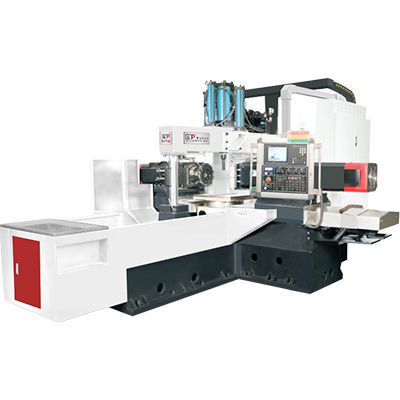

4-axis CNC milling machine ET-1000NCR

vertical2-spindlecutting

Overview
ESTOP TH-1000NC is a twin-head (duplex) high-precision CNC milling machine designed for mold base and six-side milling operations. Infinitely variable spindle speed and a heavy-duty worktable provide support for high material removal rates and large loading weights. The NT60 spindle taper is suitable for heavy cutting applications.

Product model

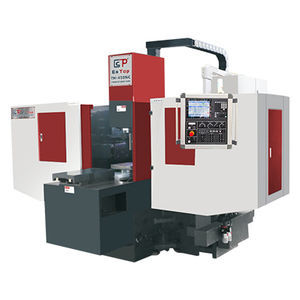

ESTOP TWIN-HEAD CNC MILLING MACHINE ET-1000NCR / TH-1000NC

Key features

• Twin-head (duplex) configuration for simultaneous or sequential milling of mold bases and six-sided parts
• Infinitely variable spindle speed (50-300)
• Heavy-duty 700×700 mm worktable with 4-side machining width 250–1000 mm and maximum loading weight 4000 kg
• NT60 spindle taper and 2×30 kW spindle power for heavy cutting

Specifications

• Model: TH-1000NC
• Series: ET-1000NCR (TWIN-HEAD CNC MILLING MACHINE)
• Control axes: 4
• Cutting capacity: 2×3.0 mm
• Cutting width: 4 sides 250–1000 mm
• Worktable dimensions: 700×700 mm
• Max loading weight: 4000 kg
• Spindle speed (infinitely variable): 50–300
• Spindle power: 2×30 kW
• Spindle taper: NT60
• Max cutting diameter: 400 mm
• X/Y/Z axis motor power: 3.0 / 3.0 / 4.0 kW
• X/Y/Z max feed speed: 8000 / 8000 / 8000 m/min
• X/Y/Z max cutting speed: 6000 / 6000 / 6000
• Squareness (mm/300 mm): 0.02
• Dimensional accuracy (mm/300 mm): 0.02
• Hydraulic oil tank: 80 L
• Lubrication oil tank: 3 L
• Power supply / consumption: AC380V/200 80KVA
• Machine net weight: 15000 kg
