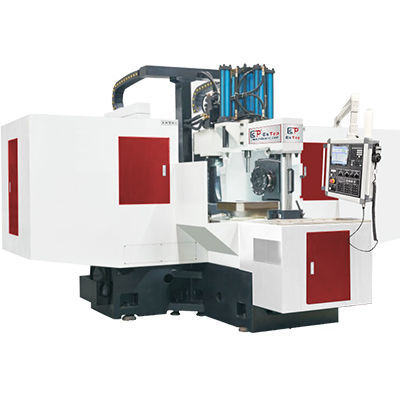

4-axis CNC milling machine TH-800NC

vertical2-spindleNT50

Overview
The TH-800NC is a twin-head CNC milling machine designed for industrial metalworking. It features two NT50 spindles with infinitely variable speed control, a 600×600 mm worktable and a maximum loading capacity of 2000 kg, enabling machining of wide workpieces and heavy assemblies.

Key specifications

• Model: TH-800NC
• Control axes: 4 (X/Y/Z/A)
• Spindles: 2 × NT50, 2 × 15 kW
• Cutting width: 60–850 mm
• Worktable: 600 × 600 mm
• Max loading weight: 2000 kg

Applications
Suitable for machining large metal plates, structural components and production parts in fabrication, tooling and heavy industry where twin-head machining increases throughput and reduces setup time.

Technical specifications

• Cutting capacity: 2 × 3 mm
• Cutting diameter: 250 / 300 mm
• Spindle speed (infinitely variable): 50–500 rpm
• Spindle power: 2 × 15 kW
• X/Y/Z/A axis motor power: 3 / 3 / 3 / 2 kW
• X/Y/Z Max feed speed: 8000 / 8000 / 8000 m/min
• X/Y/Z Max cutting speed: 6000 / 6000 / 6000
• Spindle taper: NT50
• Squareness (mm/300mm): 0.015
• Dimensional accuracy (mm/300mm): 0.015
• Hydraulic oil tank: 80 L
• Lubrication oil tank: 3 L
• Machine net weight: 12500 kg
• Required space: 4.6 × 4.2 m

Installation & power
Power requirement: AC380V/220V, 45 KVA. Allow sufficient floor space and lifting equipment for installation; machine weight is 12 500 kg. Verify foundation and electrical supply with site engineer before delivery.

Options & accessories

• Tooling and clamping fixtures
• Coolant and chip removal systems
• Control system configurations and software packages

Ordering & support
Specify model TH-800NC and required configuration when requesting a quote. Contact your ESTOP sales representative for lead times, installation services and spare parts.
