5-axis CNC machining center HMU-800NC

verticalwith rotary tilting tableHSK-63-A

Product

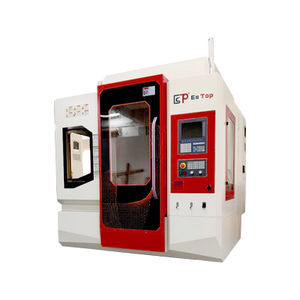

HMU-800NC 5-axis vertical machining center, model HMU800, work envelope 800×500×420 mm.

Overview
Floor-mounted CNC machining center with a 5-axis cradle, linear motor drives and interchangeable spindle options. Designed for precision multi-sided machining and complex freeform contours. Available for factory-direct sale and configurable for automation, control and tooling requirements.

Technical specifications

• X/Y/Z travel: 800 / 500 / 420 mm
• Spindle-to-table distance: 70–490 mm
• Cradle turntable disk diameter: 320 mm
• Max machining diameter on cradle: 530 mm
• Max workbench load: 200 kg
• Cradle rotation: C-axis 360°; A-axis ±120°
• Cradle rated speeds: A 350 rpm / C 100 rpm
• Allowable torque: A 60 N·m / C 60 N·m
• Standard spindle: HSKE40-D120-40000 (optional: HSKA63-D150-20000)
• Tool magazine: 20-position disk magazine
• Drive (X/Y/Z): linear motor
• Maximum rapid feed (X/Y/Z): 48 / 48 / 48 m/min
• Positioning accuracy (VID): 0.005 mm; Repeatability: 0.003 mm
• Machine weight: 8500 kg
• Footprint (L×W×H): 2700 × 2280 × 2470 mm

Drives, control and tooling

• Linear motor axes for high-speed positioning
• Choice of high-speed HSKE40 spindle or higher-torque HSKA63 option
• 20-tool disk magazine for extended multi-tool cycles
• Customizable control package and automation interfaces

Typical applications

• Complex aerospace structural and component machining
• Automotive parts and gearbox components
• Die & mold machining and precision tooling
• Prototype and small-series production requiring simultaneous 5-axis machining

Note
1. Dimensions and specifications are subject to change without prior notice.
2. Machine appearance may vary according to final configuration and shipment.
