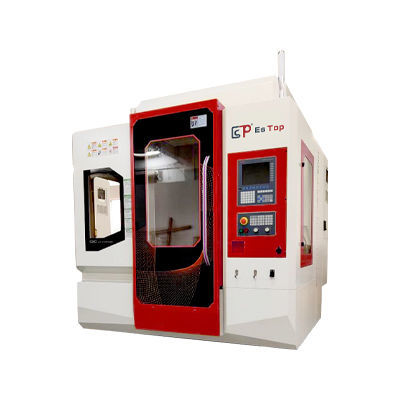

5-axis CNC machining center HMU-600NCvertical24 toolsdisc
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Number of tool stations
- 24 tools
- Other characteristics
- with linear motor, disc
- X travel
600 mm
(23.62 in)- Y travel
500 mm
(19.69 in)- Z travel
300 mm
(11.81 in)- Rotational speed
24,000 rpm, 40,000 rpm
(150,796 rad.min-1, 251,327 rad.min-1)- Table rotation (C axis)
360 °
- Work feed X-axis
60 m/min
- Work feed Y-axis
60 m/min
- Work feed Z-axis
60 m/min
- Positioning accuracy
0.003 mm
(0.00012 in)- Repeatability
0.002 mm
(0.00008 in)- Weight
5,000 kg
(11,023.11 lb)- Overall length
2,240 mm
(88.2 in)- Overall width
2,000 mm
(78.7 in)- Overall height
2,400 mm
(94.5 in)
Description
Product overview
HMU-600NC is a high-speed 5-axis CNC vertical machining center with a cradle turntable (five axes), linear motor drives on X/Y/Z and a 24-tool disk magazine.
Summary
Notes
Technical table
X-axis: 600 mm
Y-axis: 500 mm
Z-axis: 300 mm
Spindle-to-table distance: 85–385 mm
Cradle turntable disk diameter: 260 mm; Max machining diameter: 400 mm
Rotation angle: C-axis 360° / A-axis ±120°; Rated speed: A 253 rpm / C 105 rpm; Allowable torque: A 200 N·m / C 200 N·m
Standard spindle: HSKE40-D120-40000; Optional spindle: HSKE50-D150-24000
Tool magazine: disk, 24T
Drive (X/Y/Z): linear motor
Max rapid feed (X/Y/Z): 60/60/60 m/min
Positioning accuracy (VID): 0.003 mm; Repeated positioning accuracy (VID): 0.002 mm
Machine weight: 5000 kg
Floor space (L×W×H): 2240×2000×2400 mm
Features / Technical specifications
HMU-600NC is a high-speed 5-axis CNC vertical machining center with a cradle turntable (five axes), linear motor drives on X/Y/Z and a 24-tool disk magazine.
Summary
- Processing range: X 600 mm, Y 500 mm, Z 300 mm
- Spindle-to-table distance: 85–385 mm
- Cradle turntable disk diameter: 260 mm; max machining diameter: 400 mm
- Workbench max load: 00 kg
- Rotation angles: C-axis 360°, A-axis ±120°; rated speed: A 253 rpm / C 105 rpm; allowable torque: A 200 N·m / C 200 N·m
- Standard spindle: HSKE40-D120-40000; optional spindle: HSKE50-D150-24000
- Tool magazine: disk type, 24 tools
- Drive (X/Y/Z): linear motor; max rapid feed (X/Y/Z): 60/60/60 m/min
- Positioning accuracy (VID): 0.003 mm; repeated positioning accuracy (VID): 0.002 mm
- Machine weight: 5000 kg; floor space (L×W×H): 2240×2000×2400 mm
Notes
- The product dimensions and specifications are subject to change without prior notice.
- Machine appearance and final configuration are confirmed at contract and shipment.
Technical table
X-axis: 600 mm
Y-axis: 500 mm
Z-axis: 300 mm
Spindle-to-table distance: 85–385 mm
Cradle turntable disk diameter: 260 mm; Max machining diameter: 400 mm
Rotation angle: C-axis 360° / A-axis ±120°; Rated speed: A 253 rpm / C 105 rpm; Allowable torque: A 200 N·m / C 200 N·m
Standard spindle: HSKE40-D120-40000; Optional spindle: HSKE50-D150-24000
Tool magazine: disk, 24T
Drive (X/Y/Z): linear motor
Max rapid feed (X/Y/Z): 60/60/60 m/min
Positioning accuracy (VID): 0.003 mm; Repeated positioning accuracy (VID): 0.002 mm
Machine weight: 5000 kg
Floor space (L×W×H): 2240×2000×2400 mm
Features / Technical specifications
- Model: HMU-600NC
- Processing range: X 600 mm, Y 500 mm, Z 300 mm
- Spindle-to-table distance: 85–385 mm
- Cradle turntable disk diameter: 260 mm
- Max machining diameter: 400 mm
- Workbench max load: 00 kg
- Rotation angles: C-axis 360°, A-axis ±120°
- Rated speed: A 253 rpm / C 105 rpm
- Allowable torque: A 200 N·m / C 200 N·m
- Standard spindle: HSKE40-D120-40000
- Optional spindle: HSKE50-D150-24000
- Tool magazine: disk type, 24 tools
- Drive type (X/Y/Z): linear motor
- Max rapid feed (X/Y/Z): 60/60/60 m/min
- Positioning accuracy (VID): 0.003 mm
- Repeated positioning accuracy (VID): 0.002 mm
- Machine weight: 5000 kg
- Floor space (L×W×H): 2240×2000×2400 mm
