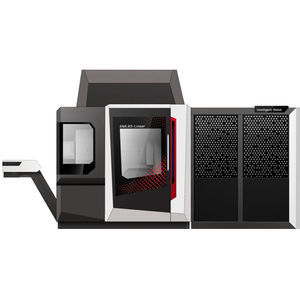

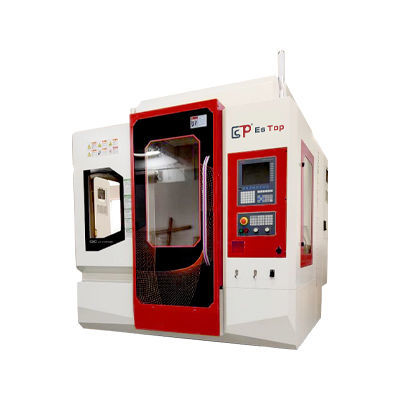

5-axis machining center HMU-500NCverticalHSK-E4020 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40
- Number of tool stations
- 20 tools
- Associated functions
- milling, contouring
- Other characteristics
- high-speed, with linear motor
- X travel
500 mm
(19.69 in)- Y travel
300 mm
(11.81 in)- Z travel
250 mm
(9.84 in)- Rotational speed
30,000 rpm, 40,000 rpm
(188,496 rad.min-1, 251,327 rad.min-1)- Workpiece max height
70 mm, 320 mm
(3 in, 13 in)- Table rotation (C axis)
360 °
- Work feed X-axis
60 m/min
- Work feed Y-axis
60 m/min
- Work feed Z-axis
60 m/min
- Table load capacity
80 kg
(176 lb)- Positioning accuracy
0.003 mm
(0.00012 in)- Repeatability
0.002 mm
(0.00008 in)- Weight
4,500 kg
(9,920.8 lb)- Overall length
1,800 mm
(70.9 in)- Overall width
2,100 mm
(82.7 in)- Overall height
2,400 mm
(94.5 in)
Description
Product overview
HMU-500NC is a 5-axis vertical machining center comparable to Dmg Mori models, designed for complex multi-axis machining of small to medium-sized components.
Key applications
Main specifications
Spindle and tool magazine
Motion, accuracy and control
Dimensions & weight
Note
HMU-500NC is a 5-axis vertical machining center comparable to Dmg Mori models, designed for complex multi-axis machining of small to medium-sized components.
Key applications
- Complex 5-axis contouring and finishing
- Precision parts for molds, tooling and components in aerospace, automotive and general industry
- High-speed machining of small to medium workpieces
Main specifications
- Model designation: HMU500 / HMU-500NC
- Working travel X × Y × Z: 500 × 300 × 250 mm
- Distance spindle nose to table: 70–320 mm
- Tilting-rotary table (A/C axes) - Disk diameter: 200 mm
- Tilting-rotary table - Max machining diameter: 300 mm
- Tilting-rotary table - Max table load: 80 kg
- Tilting-rotary table - Rotation angle: C-axis 360° / A-axis ±120°
- Tilting-rotary table - Rated speed: A: 120 rpm / C: 150 rpm
- Tilting-rotary table - Allowable torque: A: 170 N·m / C: 45 N·m
Spindle and tool magazine
- Standard spindle: HSKE40-D120 — 30000 rpm
- Optional spindle: HSKE40-D100 — 40000 rpm
- Tool magazine: disk-type, 20 tools
Motion, accuracy and control
- Axes drive (X/Y/Z): linear motor
- Maximum rapid feed (X/Y/Z): 60 / 60 / 60 m/min
- Positioning accuracy (VID): 0.003 mm
- Repeatability (VID): 0.002 mm
Dimensions & weight
- Machine weight: 4500 kg
- Floor space (L × W × H): 1800 × 2100 × 2400 mm
Note
- The dimensions of this product are subject to change without prior notice.
- The machine appearance is adjusted according to the actual contract and shipment.
