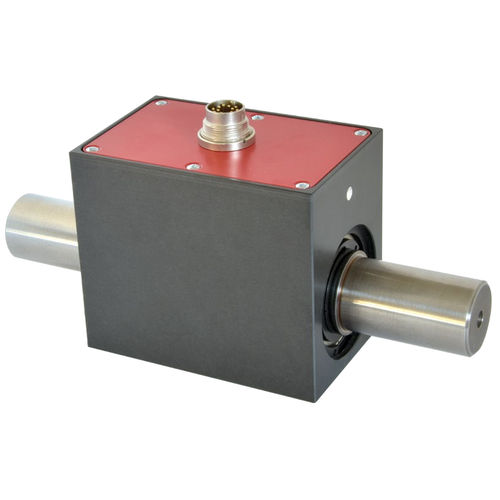

Rotary torque transducer DRDL

voltage output12 VdcIP40

2-range- torque transducer "DRDL" Simultaneous measurement of peak torque and operating torque Torquesensor with speed or angle measurement High accuracy with 100% overload protection 16 measurement range from ± 0 - 0,5 Nm up to ± 0 - 5000 Nm Features: • 2 torque ranges (1/10 - 1/2 of the 1st measuring range) • Integral signal amplifier • Low moment of inertia • Single supply voltage • Wide range of applications • Multipurpose use • Contactless output signals • Compact • Speed measurement (option) • Angular measurement (option) Series DRDL torque transducers are suitable for lab and industrial applications because of their small size and multiple mounting options. As supply voltage and output signal are transmitted without contact, the device can operate continuously with low wear and no maintenance. These transducers are also available with optional speed and angular measurement for a host of applications. The integrated signal amplifier is powered with 12 V DC and outputs an electrically isolated analog signal of 0 to ± 10 V per torque range.
