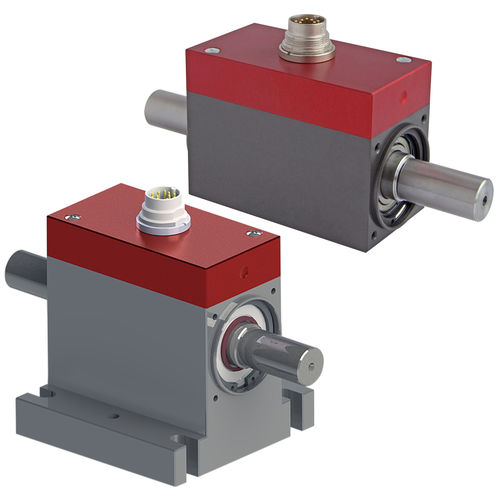

Rotary torque transducer DRVL

0-10 Vfrequency outputDC

27 torque ranges from ± 0 - 0,02 Nm up to 20.000 Nm precise measurement of torque, speed and angle of rotation Features DRVL • contactless signal transmission • integral signal amplifier • low moment of inertia • speed/RPM measurement (optional) • Angle of rotation measurement (optional) • Advanced electromagnetic compatibility (EMC) • adjustable output level for speed- and angle signal (5 - 24 V) • larger speed range for speed- and angle measurements • Frequency output 10 kHz ± 5 kHz (RS422) • larger input voltage range (10 - 28,8 V) • compact dimensions, universally applicable • Strain gauge technology • Option base • Option mounting adapter • 0.05% linearity error option Series DRVL torque transducers are suitable for lab and industrial applications because of their small size and multiple mounting options. As supply voltage and output signal are transmitted without contact, the device can operate continuously with low wear and no maintenance.  These transducers are also available with optional speed and angular measurement for a host of applications. The integrated signal amplifier is powered with 10 - 28,8 V DC and outputs an electrically isolated analog signals of 0 ± 10 V and 10 kHz ± 5 kHz. The standard version has smooth shaft ends, several types are available with optional keyways
