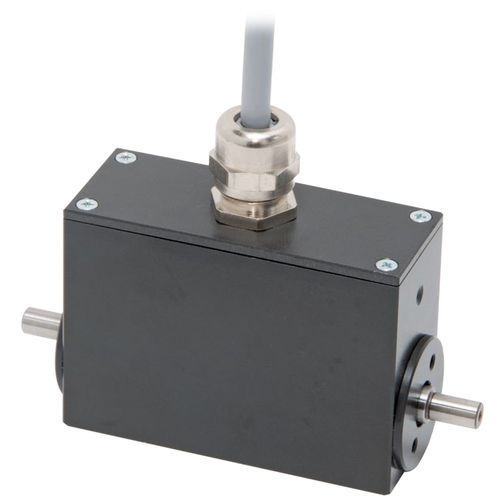

Rotary torque transducer DRWPLanalog12 Vdcwaterproof
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Output
- analog
- Supply voltage
- 12 Vdc
- Protection level
- waterproof, IP67
- Other characteristics
- non-contact
- Torque
Max.: 1,500 Nm
(1,106.34 ft.lb)Min.: 0 Nm
(0 ft.lb)- Precision
0.1 %
- Rotational speed
Max.: 20,000 rpm
(125,664 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Overload limit
100 %
Description
Torque range from ± 0 - 0,01 Nm
to ± 0 - 1500 Nm
with speed or angle detection
Features:
• waterproof (IP67)
• contactless
• integral torque amplifier
• single supply voltage
• wide range of application
• small form
• low moment of inertia
• speed measurement (option)
• angle measurement (option)
DRWPL series torque transducers are fitted with a number of gaskets in compliance with international protection IP67.
The devices are also available with optional speed or angle detection for a host of applications. The integrated signal amplifier is powered with 12 V DC and outputs an electrically isolated analog signal of 0 to ± 10 V.
