Safety switch CTM-I2-BR-U-AZ-SA-168251
IP67IP65door

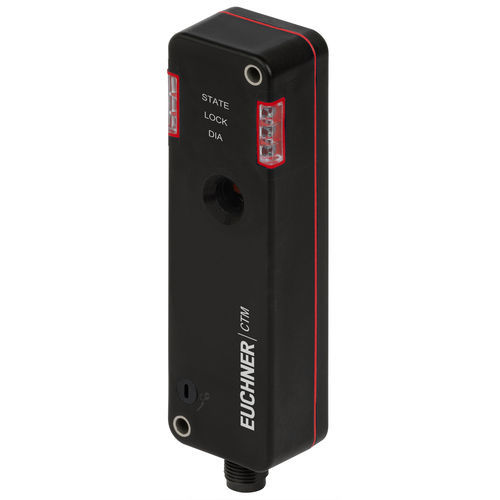

Safety switch - CTM-I2-BR-U-AZ-SA-168251 - EUCHNER GmbH + Co. KG - IP67 / IP65 / door
Safety switch - CTM-I2-BR-U-AZ-SA-168251 - EUCHNER GmbH + Co. KG - IP67 / IP65 / door
Safety switch - CTM-I2-BR-U-AZ-SA-168251 - EUCHNER GmbH + Co. KG - IP67 / IP65 / door - image - 2
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Protection level
IP67, IP65
Other characteristics
door, with guard locking, semiconductor, safety, coded safety, IO-Link
Primary current

Max.: 26.4 A

Min.: 20.4 A

Voltage

24 V

Description

• Guard locking suitable for process protection only • Series connection possible • Communication functions in combination with an IO-Link Gateway GWY-CB or ESM-CB • Short circuit monitoring • 2 safety outputs (semiconductor outputs) • Open-circuit current principle • Category 4 / PL e according to EN ISO 13849-1 • Actuating force 26 N • Extraction force 18 N • Plug connector M12, 8-pin • Auxiliary release • Unicode Unicode evaluation Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected. Guard locking actuated by power-ON and released by spring force (open-circuit current principle).
