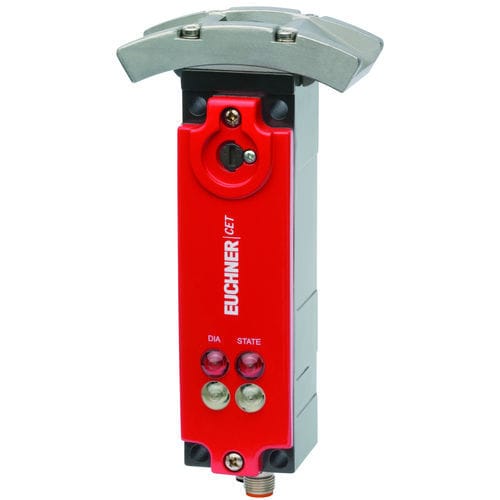

Single-pole switch CET1-AR-CDA-AH-50X-SG-106275

IP67electromechanicalsafety

• Locking force up to 6,500 N • Up to 20 switches in series • Short circuit monitoring • 2 safety outputs (semiconductor outputs) • Category 4 / PL e according to EN ISO 13849-1 • With 2 plug connectors M12 • Unicode • Teach-in input • With double ramp • Approach directions A and C (delivery state) The device may be operated only in conjunction with the actuator CET-A-.... Important: The actuator must be ordered separately. Unicode evaluation Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected. Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. LED function display State LED Status LED DIA LED Diagnostics LED LED 1 rd freely configurable LED 2 gn freely configurable
