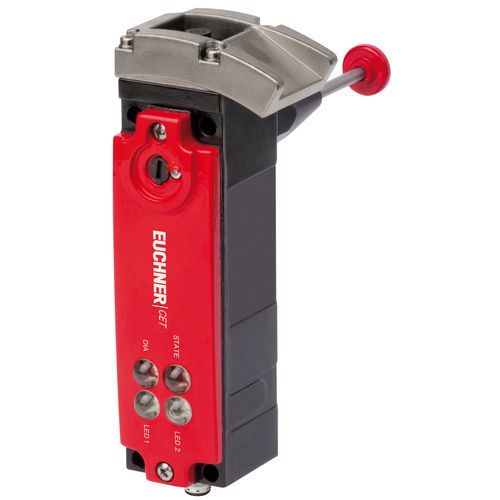

Safety switch CET3-AP-CRA-AH-50F-SA-124601

single-poleIP67with guard locking

• Locking force up to 6,500 N • Short circuit monitoring • 2 safety outputs (semiconductor outputs) • Category 4 / PL e according to EN ISO 13849-1 • With 1 plug connector M12, 8-pin • Unicode • Door monitoring output • Indication of the door position by LED • Escape release, 75 mm long • Approach direction A (delivery state) The device may be operated only in conjunction with the actuator CET-A-.... Important: The actuator must be ordered separately. Unicode evaluation Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected. Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. The door position is also monitored. The door monitoring output OUT D is set to HIGH as soon as the actuator is above the extended plunger (state: door closed, guard locking not active). OUT output D also remains set when guard locking is active.
