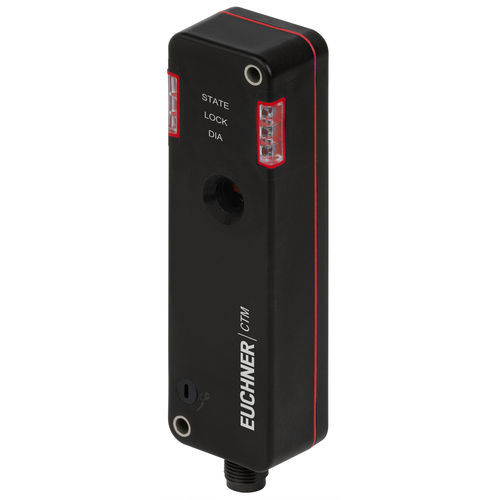

Safety switch CTM-LBI-BP-M-AZ-SA-166090
IP67IP65with guard locking

Safety switch - CTM-LBI-BP-M-AZ-SA-166090 - EUCHNER GmbH + Co. KG - IP67 / IP65 / with guard locking
Safety switch - CTM-LBI-BP-M-AZ-SA-166090 - EUCHNER GmbH + Co. KG - IP67 / IP65 / with guard locking
Safety switch - CTM-LBI-BP-M-AZ-SA-166090 - EUCHNER GmbH + Co. KG - IP67 / IP65 / with guard locking - image - 2
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Protection level
IP67, IP65
Other characteristics
with guard locking, safety, coded safety, IO-Link, actuator
Primary current

Max.: 50 mA

Min.: 20 mA

Voltage

24 V

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

• Communication functions in combination with an IO-Link Gateway GWY-CB or ESM-CB • Short circuit monitoring • 2 safety outputs (semiconductor outputs) • Bistable guard locking • Category 4 / PL e according to EN ISO 13849-1 • Actuating force 26 N • Extraction force 18 N • Plug connector M12, 8-pin • Auxiliary release • Multicode Multicode evaluation Every suitable actuator is detected by the switch. Guard locking operated by means of input signal. This type of guard locking has a function to prevent persons from unintentionally locking themselves inside if the safety door is open in case of a power failure or if the machine is switched off. the deactivation of the activated guard locking in case of a power failure.
