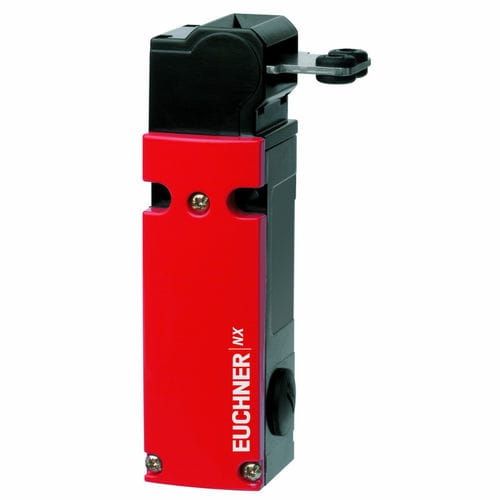

Single-pole switch NX1-2121A-MIP67with separate actuatorwith silver contacts
Add to favorites
Compare this product
Characteristics
- Number of poles
- single-pole
- Protection level
- IP67
- Other characteristics
- with separate actuator, with silver contacts, AS-Interface, without guard, safety
- Primary current
4 A
- Voltage
4 V
- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
• Cable entry M20 x 1.5 The safety switch NX without guard locking is the counterpart to safety switch TX with guard locking. Both safety switches have the same actuator. In this way, a system can be operated using safety switches with or without guard locking depending on the specific application and requirement.
• Safety switch of type 2 without guard locking
• Mounting compatible with safety switch TX (with guard locking)
• With 4 switching contacts
• Flexible connection options using three cable entries
• AS-Interface Safety at Work connection (optional)
VIDEO
Catalogs
Safety Switches with Metal Housing
220 Pages
