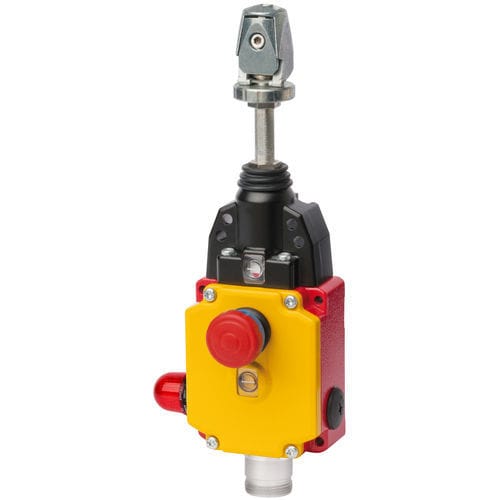

Cable-pull switch RPS-M-3131SC175BHA10LL024
single-poleIP65with housing

Cable-pull switch - RPS-M-3131SC175BHA10LL024 - EUCHNER GmbH + Co. KG - single-pole / IP65 / with housing
Cable-pull switch - RPS-M-3131SC175BHA10LL024 - EUCHNER GmbH + Co. KG - single-pole / IP65 / with housing
Cable-pull switch - RPS-M-3131SC175BHA10LL024 - EUCHNER GmbH + Co. KG - single-pole / IP65 / with housing - image - 2
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Type
cable-pull
Number of poles
single-pole
Protection level
IP65
Other characteristics
plastic, aluminium, with housing, electromechanical, emergency stop
Primary current

0.27 A, 3 A, 10 A

Voltage

50 kV, 50 kV

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Description

Rope pull switch with pull-to-reset button for emergency stop device, clamping head, plug connector MR10 • Metal housing • Emergency stop device with detent mechanism according to EN ISO 13850 and EN 60204-1 • Clamping head for pull wire • Indication of correct rope tension • Plug connector MR10 • LED left • Switching elements with 4 switching contacts • Rope pull switches RPS are emergency stop devices for protecting large, expansive machine or installation areas that cannot be protected by an enclosing housing or cover. Areas of an installation or machine can be shut down immediately from any point in the working area in the event of danger. • EMERGENCY STOP device with detent mechanism according to EN ISO 13850 • Indication of correct rope tension • Switching elements with 4 switching contacts
