Side-mount electrical cabinet air conditioner CIT series
wall-mountedverticalrack-mount

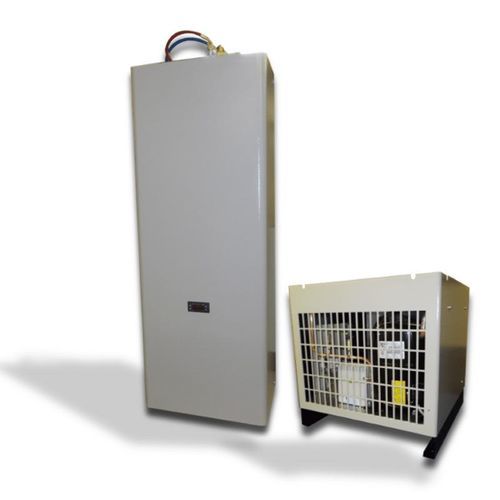

Side-mount electrical cabinet air conditioner - CIT series - EURODIFROID - wall-mounted / vertical / rack-mount
Side-mount electrical cabinet air conditioner - CIT series - EURODIFROID - wall-mounted / vertical / rack-mount
Side-mount electrical cabinet air conditioner - CIT series - EURODIFROID - wall-mounted / vertical / rack-mount - image - 2
Side-mount electrical cabinet air conditioner - CIT series - EURODIFROID - wall-mounted / vertical / rack-mount - image - 3
Side-mount electrical cabinet air conditioner - CIT series - EURODIFROID - wall-mounted / vertical / rack-mount - image - 4
Add to favorites
Compare this product
Go to the EURODIFROID website for more information

Characteristics

Configuration
side-mount, vertical, wall-mounted, rack-mount
Type
split
Applications
industrial, for server rooms, for telecommunication equipment, for the food industry, for climatic test chambers
Other characteristics
energy-saving, corrosion-resistant, dust-resistant, stand-alone
Cooling power

Min.: 1.5 kW

Max.: 4.5 kW

Height

Min.: 342 mm
(13 in)

Max.: 630 mm
(25 in)

Width

Min.: 550 mm
(22 in)

Max.: 640 mm
(25 in)

Depth

Min.: 650 mm
(26 in)

Max.: 697 mm
(27 in)

Air flow

Min.: 500 m³/h
(17,657.33 ft³/h)

Max.: 1,200 m³/h
(42,377.6 ft³/h)

Noise level

Min.: 65 dB

Max.: 68 dB

Description

Description
Active CIT air conditioners are custom-designed and assembled in France to cool server racks and technical cabinets. Split-system active air conditioners tailored to small server cabinets and technical enclosures.

Key features
  • Fully custom adaptation for rack/cabinet integration
  • Split principle: 1 outdoor unit + 1 indoor unit
  • Optimized airflow management for front intake / rear exhaust configurations
  • Dedicated engineering office for sizing and integration
  • Designed and manufactured in France

Standard equipment
Indoor unit
  • Digital display electric thermostat
  • Refrigerant connections top-entry/top-exit
  • Liquid receiver
  • Isolation refrigeration valves
  • Specific adaptation frame for rear air intake / front discharge
  • RAL 7035 finish

Outdoor unit
  • Ventilation pressure switch and condenser pressure regulation
  • IP55 electrical junction box for outdoor unit
  • Isolation refrigeration valves
  • Crankcase heater
  • RAL 7032 finish

  • Complete documentation
  • 18-month warranty (unless otherwise agreed)

Options and variants
Indoor unit
  • Mechanical thermostat
  • 24 VAC fans
  • Non-standard RAL paint finish

Outdoor unit
  • Refrigeration pressure gauges
  • BLYGOLD treatment for condenser coil
  • Non-standard RAL paint finish

Additional information
Operates on a split principle (indoor + outdoor unit) designed to cool small server cabinets and technical racks in confined environments. Benefits: compact indoor unit footprint, no internal heat dissipation into the cabinet, flexible outdoor unit placement, and simple interconnection between units. Enables optimized cabinet airflow (rear intake, front discharge).

More technical specifications
Click on "Go to the EURODIFROID website for more information"
