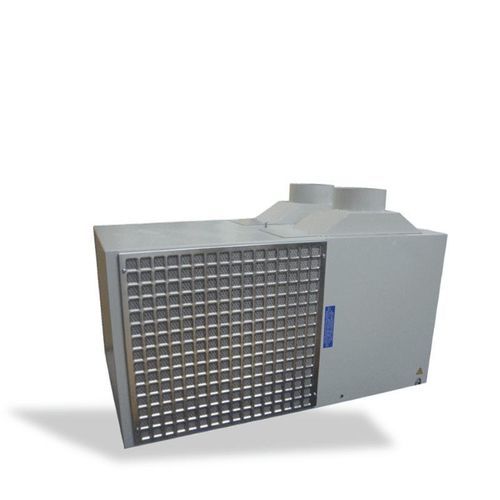

Duct air conditioner KR seriesfloor-standingcompactfor telecommunication equipment
Add to favorites
Compare this product
Characteristics
- Configuration
- floor-standing, duct
- Type
- compact
- Applications
- industrial, commercial, for computer rooms, for the food industry, for telecommunication equipment, for climatic test chambers
- Other characteristics
- mobile, stand-alone, corrosion-resistant, dust-resistant, vibration-resistant, energy-saving
- Cooling power
Min.: 1 kW
Max.: 14.6 kW
- Height
Min.: 400 mm
(16 in)Max.: 1,588 mm
(63 in)- Width
Min.: 600 mm
(24 in)Max.: 1,100 mm
(43 in)- Depth
Min.: 400 mm
(16 in)Max.: 980 mm
(39 in)- Air flow
Min.: 500 m³/h
(17,657.33 ft³/h)Max.: 6,000 m³/h
(211,888 ft³/h)- Noise level
Min.: 65 dB
Max.: 70 dB
Description
Summary
Remote ducted active air conditioners designed for use in enclosures, shelters and technical cabinets. Adaptable to different installations with remote run capability from 2 to 10 m depending on model.
Key features
Standard equipment
Options and variants
More technical specifications
Click on "Go to the EURODIFROID website for more information"
Remote ducted active air conditioners designed for use in enclosures, shelters and technical cabinets. Adaptable to different installations with remote run capability from 2 to 10 m depending on model.
Key features
- Quick, flexible installation
- Suited for enclosures, shelters and technical cabins
- Wide range of options and variants
- Remote run: 2 to 10 m depending on model
Standard equipment
- Hermetic piston compressor (except KR 150: high-efficiency scroll)
- Air-cooled ventilated condenser
- Centrifugal fan
- Capillary expansion (or expansion valve on KR75)
- Electronic regulation thermostat with digital display (mechanical for KR 10-40)
- Mechanical antifreeze thermostat
- Max remote run: 2 m (KR 10-20-40) or 10 m (KR 35-75-150)
- RAL 7035 textured enclosure (KR 150: RAL 7032 textured)
- Complete documentation
- 18-month warranty (unless special agreement)
Options and variants
- Electronic regulation thermostat with digital display (for KR 10-40)
- Corrosion protection of coils (saline environments…)
- Electric heating elements
- Remote control / status and fault reporting
- Humidity control
- Anti-vibration kit
- Outdoor installation kit
- Castors or rolling support
- Custom RAL paint
More technical specifications
Click on "Go to the EURODIFROID website for more information"
