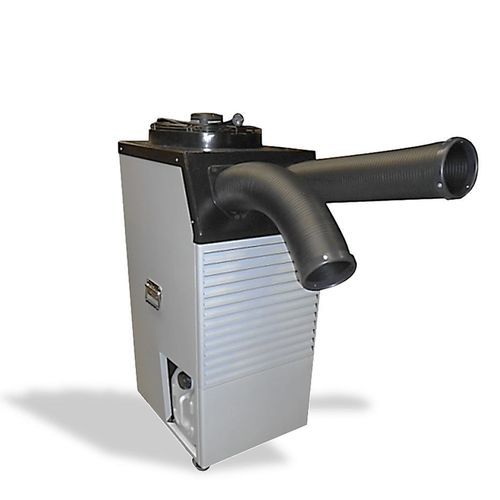

Duct air conditioner GR 70
floor-standingcompactfor telecommunication equipment

Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 2
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 3
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 4
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 5
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 6
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 7
Duct air conditioner - GR 70 - EURODIFROID - floor-standing / compact / for telecommunication equipment - image - 8
Add to favorites
Compare this product
Go to the EURODIFROID website for more information

Characteristics

Configuration
floor-standing, duct
Type
compact
Applications
industrial, commercial, for computer rooms, for the food industry, for telecommunication equipment
Other characteristics
mobile, stand-alone, dust-resistant, energy-saving
Cooling power

7,000 W
(23,884.98 BTU/h)

Height

1,280 mm
(50 in)

Width

500 mm
(20 in)

Depth

610 mm
(24 in)

Air flow

Max.: 1,020 m³/h
(36,020.96 ft³/h)

Min.: 800 m³/h
(28,251.73 ft³/h)

Noise level

55 dB

Description

Overview
Portable ducted (remote) active air conditioner suitable for temporary or multi-position cooling.

Key features
  • Easy to install
  • Mobile with castors
  • Ideal for temporary or multi-station use
  • Low maintenance
  • Remote ducting up to 5 m
  • HFO refrigerant (R1234yf) with very low GWP

Standard equipment
  • Hermetic compressor for R1234yf (GWP < 1)
  • Frost protection temperature sensor
  • Adjustable 600 mm long cooling air duct
  • Castors with brakes
  • Dust filter on condenser
  • High-pressure safety switch (refrigeration circuit)
  • Condensate recovery tray with full-tank alarm/protection (20 litres)
  • 2 fan speeds
  • Automatic or manual control
  • Maximum remote ducting: 5 m
  • RAL 7035 finish
  • Complete documentation
  • 18-month warranty (unless special agreement)

Options and variants
  • Kit for hot-air ducting (see description below)

Hot-air ducting kit
This option, fitted at the condenser outlet, allows evacuation of hot air outside the conditioned zone, reducing hot-air recirculation and improving efficiency.
  • Duct diameter: 300 mm
  • Duct length: 5 m
  • Easy to install and remove
