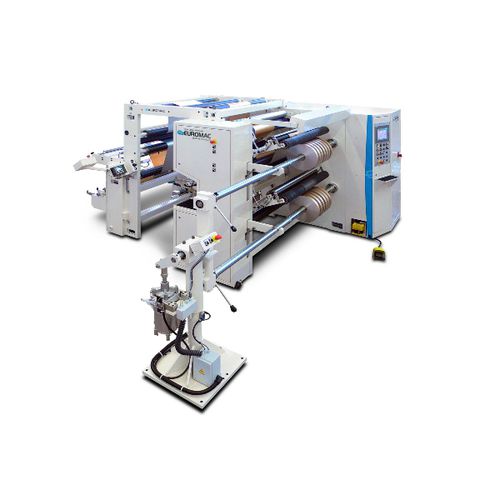

Multi-purpose slitter-rewinder TB-3p
automaticcompact

multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
multi-purpose
Options
automatic, compact
Working width

Min.: 600 mm (24 in)

Max.: 2,000 mm (79 in)

Speed

Min.: 350,000 mm/min (230 in/s)

Max.: 750,000 mm/min (492 in/s)

Description

Semi compact Duplex UNWIND – Integrated Shaftless or shafted unwinder • Dancing roller for tension control • Pneumatic Brake or electric Motor • Automatic webguiding system. SLITTING – Slitting system with oscillating Razorblades and/or Shear-cut rotary blades • Knifeholders on shaft or linear bearing guides • Specific web path for Wrap-cut or Tangent-cut • Manual or semi-automatic positioning of slitting blades. WEB PATH – Compact Overhead web path • Aluminum idler rollers • Driven main pull roll with own pressure roller or “S” wrap REWIND – Duplex rewind with lay-on rolls • Differential Friction shafts or Air expanding shafts • Independent lay-on rollers with pneumatic pressure control • Tension regulation by multiple systems • Manual core positioning or assisted by laserpointers or by automatic loader • Roll offloading by twin bar device or motorised trolley. AUTOMATION – PLC for all machine functions and controls • Touch screen digital operator panel • Modem for remote monitoring.

VIDEO

Catalogs

TB-3p
TB-3p
2 Pages
