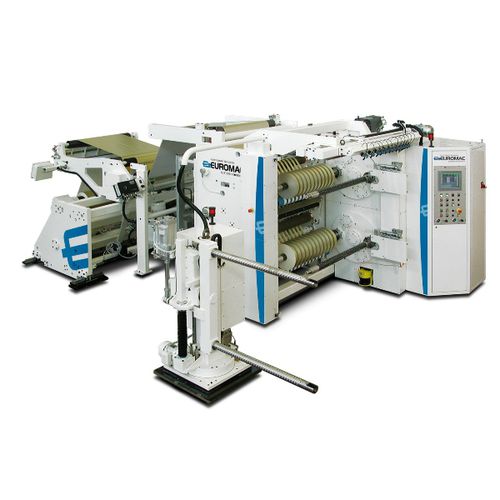

Multi-purpose slitter-rewinder TB-3T2
automaticduplex turret

multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
multi-purpose
Options
automatic, duplex turret
Working width

Min.: 1,000 mm (39 in)

Max.: 2,200 mm (87 in)

Speed

Min.: 500,000 mm/min (328 in/s)

Max.: 750,000 mm/min (492 in/s)

Description

Double Turret UNWIND – Separate shaftless or shafted unwind stand • Dancing roller for tension control • Pneumatic brake or electric motor • Automatic webguiding system. SLITTING – Slitting system at oscillating razorblades and/or shear-cut rotary blades • Knifeholders on shaft or linear bearing guides • Manual, semi automatic or full-automatic positioning of slitting blades. WEB PATH – Overhead bridge by aluminum idler rollers • Driven main pull roll with own pressure roller or “S” wrap system. REWIND – Duplex Turreted rewind, assisted by lay-on rolls • Automatic cycle for downtimes of aprox. 30 seconds • Transversal splice in automatic sequence • Differential Friction shafts or Air expanding shafts • Independent lay-on units with pneumatic pressure regulation • Manual core positioning or assisted by laserpointers or by automatic loader • Roll offloading by twin bar device or motorised trolley. AUTOMATION – PLC for all machine functions and controls • Touch screen digital operator panel • Modem for remote monitoring.

VIDEO

Catalogs

TB-3T2
TB-3T2
2 Pages
