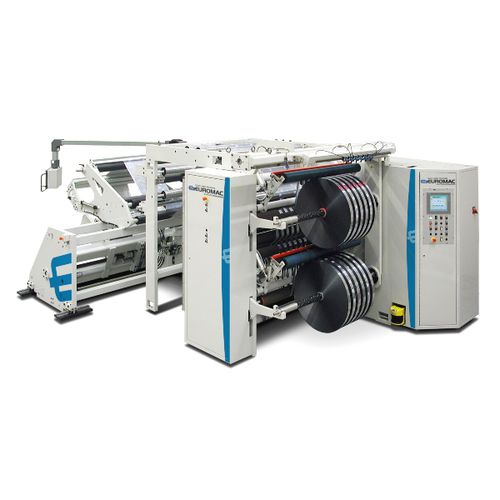

Multi-purpose slitter-rewinder TB-3
automaticdouble

multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
multi-purpose
Options
automatic, double
Working width

Max.: 2,200 mm (87 in)

Min.: 1,000 mm (39 in)

Speed

Max.: 750,000 mm/min (492 in/s)

Min.: 450,000 mm/min (295 in/s)

Description

Duplex (overhead) UNWIND – Separate Shaftless or shafted unwinder • Dancing roller for tension control • Pneumatic Brake or electric Motor • Automatic webguiding system. SLITTING – Slitting system with oscillating Razorblades and/or Shear-cut rotary blades • Knifeholders on shaft or linear bearing guides • Specific web path for Wrap-cut or Tangent-cut • Manual or semi-automatic or full automatic positioning of slitting blades. WEB PATH – Overhead web path • Aluminum idler rollers • Driven main pull roll with own pressure roller or “S” wrap. REWIND – Duplex rewind with lay-on rolls • Differential Friction shafts or Air expanding shafts • Independent lay-on rollers with pneumatic pressure control • Tension regulation by multiple systems • Manual core positioning or assisted by laserpointers or by automatic loader • Roll offloading by twin bar device or motorised trolley. AUTOMATION – PLC for all machine functions and controls • Touch screen digital operator panel • Modem for remote monitoring.
