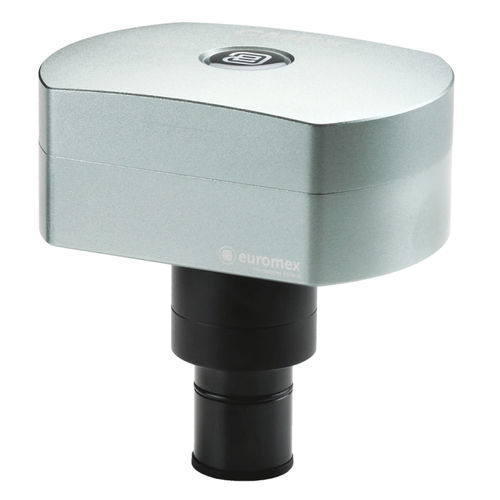

Microscope camera CMEX series

full-colorCMOSUSB 3.0

The high speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro USB 3.0 high speed camera  The CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro cameras are equipped with  relatively 3.1, 5.1, 10 or 18 MP CMOS sensors with 12 bits grayscale conversion and a 24 bits color rendering. This cameras are equipped with a USB- 3 data interface enabling fast frame rates (up to 101 f/s) and are supplied with ImageFocus Alpha software Besides capturing of images and videos, the software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. A 2 GB RAM 2.8 GHz computer and 17 inch display is recommended as minimum requirement. A Mac OS light version is available (for capturing images only) Highlights • High speed cameras • ADC 12 bits, color depth 24 bits • Excellent software • USB 3.0 interface (USB 2.0 compatible) • 3.1 to 18 Mpix CMOS sensors • Great color reproduction • Low signal/noise ratio TECHNICAL SPECIFICATIONS CMEX-3 PRO (DC.3000-Pro) Sensor: CMOS 1/3 inch Pixels: 2048 x 1534 pixels, 3.1 MP Scan mode: progressive, rolling shutter Pixel size: 2.2 μm x 2.2 μm Filter: RGB Mount: C-mount Max fps: Up to 28 frames per second (2048 x 1534 pixels) Up to 53 frames per second (1024 x 770 pixels) Exposure: automatic or manual, 0.1 ms to 2000 ms White Balance: automatic or manual
