The CMEX-5 WiFi-2 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems

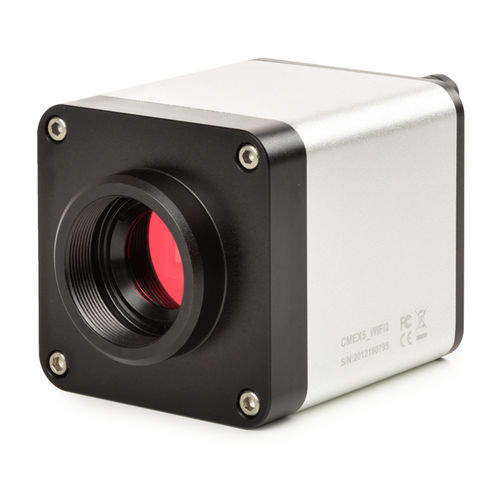

CMEX-5 WiFi-2 5.0 MP digital WiFi + USB camera
with 1/2.5 inch CMOS sensor
Adding a WiFi camera to your microscope is ideal for wireless sharing/viewing microscope images. Ideal for demonstrations or places were remote viewing is needed
Apps for Android for this camera are supplied on cd or can be downloaded from this page under Downloads (free of charge) of from the Apple Store (free of charge) . ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC and is supplied on CD. The camera is powered by the included USB charger or a computers USB port. Standard C-mount mounting with 0.37x C-mount objective included
Highlights
• Color CMOS WiFi camera
• 1/2.5 inch, 5.0 MP CMOS sensor
• Low signal/noise ratio
• Sends H.264 encoded images to WiFi enabled smartphones, computers, and tablets with iOS and Android
• Real time images 1280 x 720 pixels
• ADC 12 bits, color depth 24 bits
• Power supply via USB port or USB charger
TECHNICAL SPECIFICATIONS CMEX-5 WiFi-2 (DC.5000-WiFi-2)
Sensor
CMOS 1/2.5 inch
Pixels
1280 x 720 pixels, 5.0 Mpix
Scan mode
Electronic rolling shutter
Pixel size
2.2 μm x 2.2 μm
Filter
RGB color filter and IR-cut off filter (380-650 nm)
Mount
C-mount
