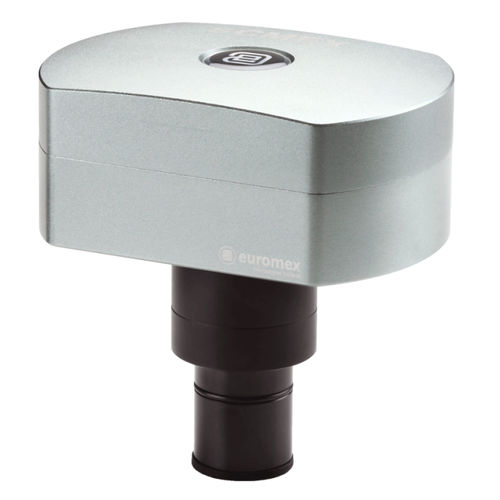

Microscope camera sCMEX series

full-colorsCMOSUSB 3.0

The different USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes  sCMEX USB-3 cameras with Scientific sCMOS sensor The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software Besides capturing images and videos, the software allows measurements on still and live images and annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations. Also compatible with Mac OS (image capturing only). PC requirements: Intel Core2 2.8 GHz or higher or equivalent, 2 GB memory, USB-3 port, 17 inch display Highlights • Highest speed camera • Low signal/noise ratio • Back-illuminated sCMOS sensor • SONY Exmor R sCMOS color USB 3.0 camera • USB 3.0 interface • Perfect color-reproduction capability TECHNICAL SPECIFICATIONS sCMEX Sensor                             SONY Exmor R sCMOS Scan mode                     Progressive, rolling shutter Filter                               RGB Mount                             C-mount ADC                               16 bits Color depth                     36 bits Exposure                        Automatic or manual, from 0.1 ms to 3 seconds White balance                Automatic/manual
