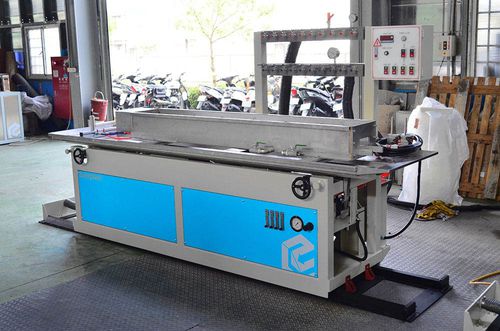

Profile extrusion calibrating table

Positions can be adjusted front and back or left and right for Everplast Profile Calibration Table Machine. Front-back movements are done by an inverter motor which can make either high speed or incremental adjustments. Water flowmeter cooling device is displayed to allow control of die temperatures and monitor temperature records. Utilizes vacuum pumps with ratings of 3HP to 100HP. Cooling capacity of 30KG/HR to 500KG/HR. Different plastic raw materials, such as PVC, PP, PE … etc., have different characteristics. Everplast / E-Plast provides a variety of special-shaped cooling water tank series, including: Profile Cooling Calibration Tank Machine, Profile Water Cooling Tank Machine, Profile Vacuum Water Cooling Tank Machine, Profile Cooling Calibration Tank Machine for Door Panel, its suitable for the characteristics of various raw materials. Utilizes vacuum pumps with ratings of 3HP to 30HP. Cooling capacity of 30KGS/HR to 500KGS/HR. Positions can be adjusted front and back or left and right. Front-back movements is done by a stepless inverter motor which can make either high speed or incremental adjustments. Water flowmeter cooling device is displayed to allow control of die temperatures and monitor temperature records. A specially designed die clamp frame allows vertical and horizontal adjustment to accept molds of all sizes. A phase control electrical protector guards against errors in vacuum pump rotation.
