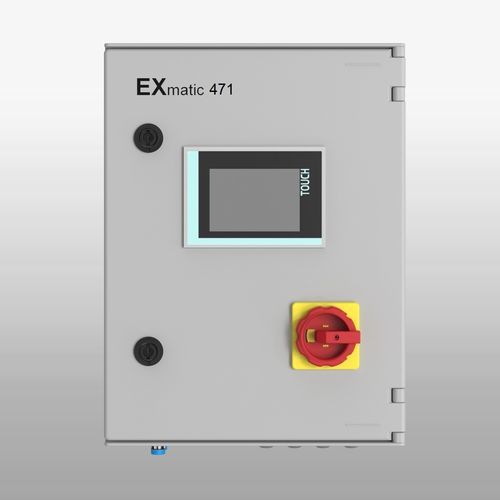

Control unit with display EXmatic 471

for retractable probe housingprogrammablestand-alone

Overview
EXmatic 471 is an electro-pneumatic control unit designed for fully automatic operation of pneumatic retractable probe housings of the EXtract 8XX series. In combination with an EXtract 8XX housing the unit drives sensors out of the process into a maintenance position for automatic cleaning, inspection, calibration or replacement. Cleaning cycles and additional functions are programmable. Output contacts allow integration with process control systems for external start and monitoring. EXmatic 471 is an open, autonomous system compatible with any transmitter.

Downloads (filenames)

• Technische Information_EXmatic 470_471_260226.pdf
• Salesfolder Armaturen.pdf
• Download Datenblatt

Your advantages

• Fully automatic measuring points
• Extended sensor service life and reduced maintenance effort
• Open system — compatible with any transmitter
• Output signals for PCS/DCS integration
• Support for up to three different cleaning solutions
• Sealing water (lock water) function
• Pre- and post-cleaning configurable
• Integrated connecting hose for plug-and-play operation
• Safe sensor removal under live process conditions

Applications

• Control of retractable probe housings for fully automatic cleaning cycles
• Removal of sensors while the process is running
• Processes requiring regular automatic cleaning intervals
• Sites with persistent sensor contamination
• Measurements in adherent or fibrous media

Configuration options

• Housing: glass-reinforced plastic with display or stainless steel with display
• Cleaning media per actuator: options for 1, 2 or 3 cleaning solutions (various combinations possible)
• Connecting hose length per actuator: without, 3 m, 5 m, 10 m or combinations (e.g. 3 m / 5 m, 5 m / 10 m, 10 m / 10 m)
• Interface: discrete I/O 24 V DC

Specifications

• Voltage supply: 24 V DC / 30 VA
• Air supply: compressed air 6 bar, filtered
• External trigger input: 24 V DC internal supply for potential-free contact
• Maximum current consumption: 1.6 A
• External relay outputs: 24 V DC, max. 250 mA
• Pump output: 24 V DC, max. 250 mA
• Alarm contact output: 24 V DC, max. 100 mA
• Housing materials: glass-reinforced plastic or stainless steel
• Housing dimensions: 300 x 400 x 200 mm
• Ambient operating temperature: 0 to +55 °C
• Protection class: IP54
