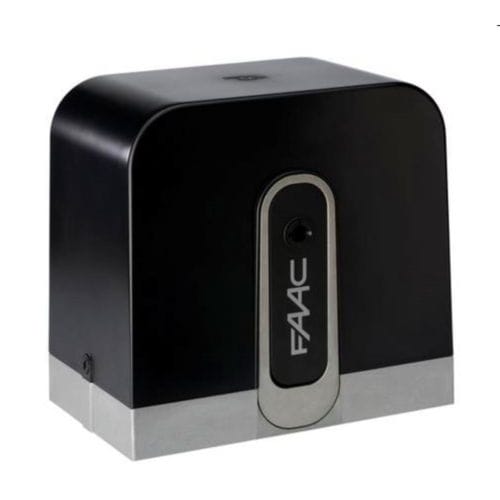

Electric actuator C720

linearfor sliding gates

Product overview
Low-voltage gearmotor C720 24V for sliding gates up to 400 kg, designed for residential applications; virtual encoder and BUS compatibility enable precise control and primary/secondary operation.

Technical specifications

• Duty: Residential
• Power consumption: 170 W
• Power supply: 24 V
• Max gate weight: 400 kg
• Max speed: 18 m/min
• Limit switch type: Inductive / Magnetic
• Special features: Virtual encoder; compatible with BUS accessories; primary/secondary operation via BUS

Variants
Model | Part Number | Application | Use Frequency | Limit Switch Type | Power Supply | Maximum Leaf Weight | Gate Obstacle Detection
C720 24V | 109320 | Residential | Continuous | Inductive | 24 V | 400 kg | Virtual encoder

Key features

• New mobile-axis reduction principle (FAAC PATENT)
• Exceptionally high mechanical efficiency >80%
• Electronic control unit with anti-crushing device and virtual encoder with reverse on obstacle detection
• Magnetic limit switches
• Primary/secondary (master/slave) configuration available

Product details
Low-voltage gearmotor engineered for sliding gates up to 400 kg. Installation video available. FAAC - Simply automatic.

Characteristics / technical specifications

• Duty: Residential
• Power consumption: 170 W
• Max gate weight: 400 kg
• Max speed: 18 m/min
• Power supply: 24 V
• Limit switch type: Inductive / Magnetic
• Special features: Virtual encoder; BUS accessories compatibility; primary/secondary operation via BUS
• Variant: C720 24V — Part Number: 109320
