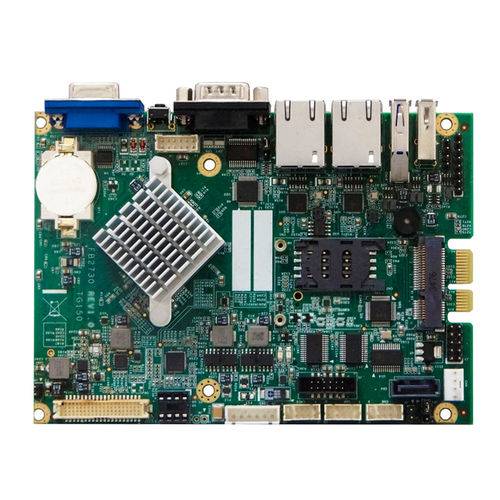

PCIe CPU board FB2730

Intel® Atom E3845RS-232

Special Features: Fanless, Low Power & Multi-LAN Applications: Factory e-automation、Home Automation、Gaming Function Items - Specifications Operating Freq. (Hz) - Atom E3845 1.91GHz BUS I/F - PCIe Mini-Card Slot *1 L2 Cache - 2MB On-Board DRAM - - DRAM Socket - 204-Pin SoDIMM *1 (DDR3L, 4GB Max) VGA Chipset - Intel HD VRAM - DVMT-5.0 Dual Display - - Audio - Yes (Option) Serial Port - RS232 *3、RS232/422/485 *1 Parallel Port - - FDC/IDE/SATA - SATA*1 KB/Mouse - - LAN - 2 (Giga LAN) USB - 3 (2.0)、1 (3.0) GPIO - - WDT / HWM - Yes / Yes Flash/Memory Socket - CFast Socket *1 BIOS - AMI Power Required - +5V only, 22VA Max Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 145 x 102 mm
