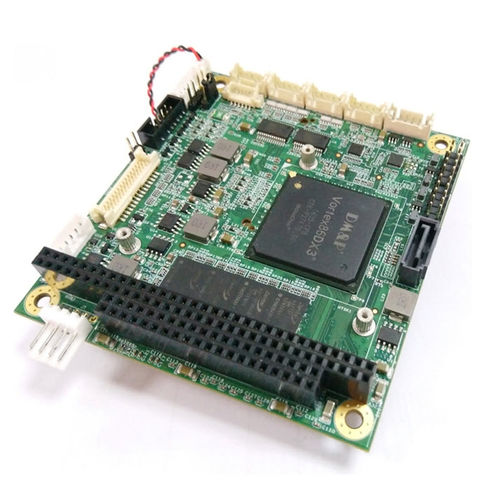

PC/104-plus CPU board FB2413

DM&P Vortex86DX

Special Features: Fanless, Low Power & 512MB On Board RAM Applications: Factory e-automation、Home Automation、Digital Signage、Gaming Function Items - Specifications Processor - Vortex86DX3 Operating Freq. (Hz) - 1GHz Chipset - DMP Vortex86DX3 BUS I/F - PC/104 L2 Cache - 512KB On-Board DRAM - 512MB DDR3 DRAM Socket - - VGA Chipset - Vortex86DX3 VRAM - UMA Display - VGA、LCD/LVDS (Option) Dual Display - - Audio - - Serial Port - RS232 *3、RS232/485 *1 Parallel Port - - FDC /CF /SATA - No / Yes (PATA)/ Yes (SATA) KB / Mouse - Yes LAN - 1 (Giga LAN) USB - 4 (2.0) GPIO - - WDT / HWM - Yes / No Flash/Memory Socket - CF Socket *1 BIOS - AMI Power Required - +5V only, 25VA Max (12 VA Typical) Operation System - DOS622/ Windows XPe / 7, and Linux Operation Temperature - 0°C to 60°C (32℉ to 140℉) Compliances - RoHS Dimension - 90.2 x 95.9 mm
