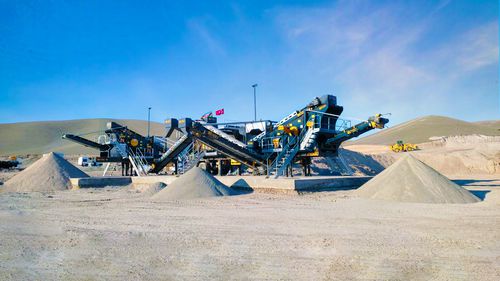

Jaw crushing and screening plant FULLSTAR 90

mobileprimaryhigh-capacity

TECHNICAL SPECIFICATIONS: - Model: Fullstar-90 - Production Capacity: 120-180 Tons Per Hour - 1st Crusher: Primary Jaw Crusher – 900x650mm - 2nd Crusher: Secondary Impact Crusher – Rotor Ø1250x1000 mm - Maximum Feeding Size: 600 mm - Vibrating Screen Size and Deck: 1st Chassis: 1700x4500 mm : 2nd Chassis: 1550x4000 mm(Grizzly) ¬- Screw Washer Size: 600x5000 mm (Twins Helix) - Total Motor Power: 377 Kw - Generator (optional): 450 kvA - Plant Dimensions: 1st Chassis: 18960 x 4070 x 4650mm : 2nd Chassis: 15500 x 4650 x 4400mm FULLSTAR-90 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder(Bypass) • - Primary Jaw Crusher • - Secondary Impact Crusher • - High Stroke Type Vibrating Screen • - Screw Sand Washer (Single Helix) • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
