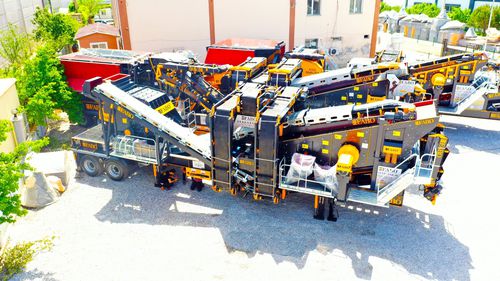

Jaw crushing and screening plant FULLSTAR -110

mobileprimaryhigh-capacity

TECHNICAL SPECIFICATIONS: - Model: FULLSTAR-110 - Production Capacity: 200-300 Tons Per Hour - 1st Crusher: Primary Jaw Crusher – 1100x850mm - 2nd Crusher: Secondary Impact Crusher – Rotor Ø1250x1500 mm - Maximum Feeding Size: 800 mm - Vibrating Screen Size and Deck: 1st Chassis: 2200x5500 mm : 2nd Chassis: 1700x4500 mm(Grizzly) ¬- Screw Washer Size: 800x8000 mm (Twins Helix) - Total Motor Power: 560 Kw - Generator (optional): 700 kvA - Plant Dimensions: 1st Chassis: 22000 x 4700 x 4700mm : 2nd Chassis: 17500 x 4650 x 4600mm FULLSTAR-110 IS A COMBINATION OF: • - Bunker(Hopper) • - Vibrating Grizzly Feeder(Bypass) • - Primary Jaw Crusher • - Secondary Impact Crusher • - High Stroke Type Vibrating Screen • - Screw Sand Washer (Single Helix) • - Folding type feeding, feedback, bypass and stock conveyor belts • - Hydraulic feet • - Mobile Chassis with axles and tires • - Fully Automation System • - Dust Suppression System • - Easy walking platforms for maintenance • - Diesel Generator (Optional) FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
