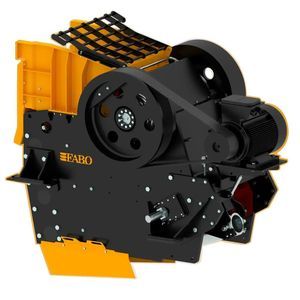

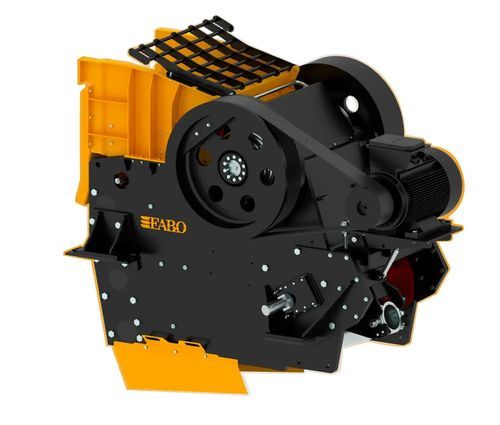

Jaw crusher CLK 11-75

stationaryprimary

Overview
Jaw crushers are used to reduce hard, abrasive, high‑silica materials such as basalt and granite. The CLK 11-75 is a bolted‑structure primary jaw crusher designed for quarry applications, combining a bolted heavy frame, high flywheel speed and hydraulic adjustment for the moving jaw to facilitate operation and maintenance.

Key Features

• Bolted type heavy structure designed for quarry applications
• High crushing efficiency for hard, abrasive materials (basalt, granite)
• High flywheel speed for maximum capacity
• User-friendly hydraulic opening adjustment
• Maintenance-friendly bolt-fixed linings
• Heat-sensor protected bearings on eccentric shaft group

Highlighted Components / Icons

• Jaw crusher (primary crushing unit)
• Moving jaw (hydraulically adjustable opening)
• Maximum feeding: 760 mm
• Motor: 110 kW

Bolted Type Jaw Crusher Parts

• 1 - Fixed body: Fixed body protected against abrasion and hard impacts
• 2 - Moving jaw: Opening adjustable via the hydraulic system
• 3 - Linings: Bolt-fixed replaceable linings protect the fixed body and allow fast replacement
• 4 - Flywheels: High-speed flywheels cast in SFERO to provide maximum capacity
• 5 - Eccentric shaft group: Enables moving jaw motion; bearings protected by heat sensors
• 6 - Tensioner assembly: Hydraulic system for changing the moving jaw opening; operable by personnel

Technical drawing / Shipping Dimensions
Technical drawings and shipping dimensions are provided on the product page as drawings and tables in metric and imperial units.

Technical Specifications

• Series / Model family: CLK series
• Commercial designation: CLK 11-75 Bolted Type Jaw Crusher
• Maximum feeding size: 760 mm
• Drive / Motor power: 110 kW
• Structure: Bolted type, fixed body protected against abrasion and impacts
• Moving jaw: Moving jaw with hydraulic opening adjustment
• Linings: Bolt-fixed replaceable linings
• Flywheels: High-speed flywheels, SFERO casting
• Eccentric shaft group: Enables moving jaw movement; bearings with heat sensor protection
• Tensioner: Hydraulic tensioner assembly for adjusting moving jaw opening
• Primary application: Crushing hard, abrasive, high-silica materials (e.g., basalt, granite)
• Maintenance: Designed for ease of maintenance and parts replacement
