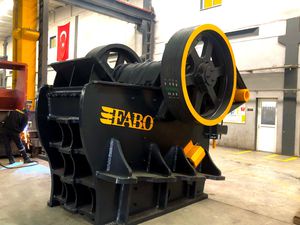

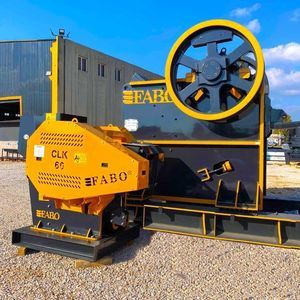

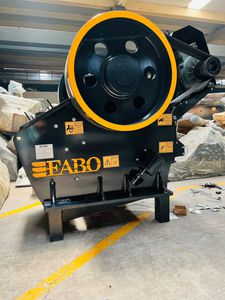

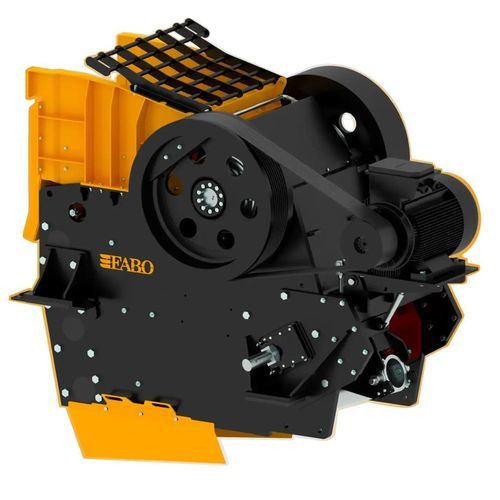

Jaw crusher CLK 11-60

stationaryprimarystone

Product Overview
Bolted type jaw crusher designed for primary crushing of hard, abrasive stones such as basalt and granite.

General Description
Jaw crushers are used to crush hard and abrasive materials with high silica content. The CLK 11-60 features a bolted frame, high flywheel speed and protective safety plates on the pitman. Special pitman geometries and rear blocks improve performance, reliability and longevity. User-friendly hydraulic adjustment mechanisms simplify setting the pitman opening.

Main Features

• Bolted frame design for rigidity and simplified maintenance
• High flywheel speed to maximize throughput
• Safety plates on the pitman
• Hydraulic adjustment for pitman opening
• Components specified for abrasive, high-silica materials (basalt, granite)

Highlighted Data

• Jaw crusher
• Moving pitman
• 600 mm maximum feeding
• 90 kW motor

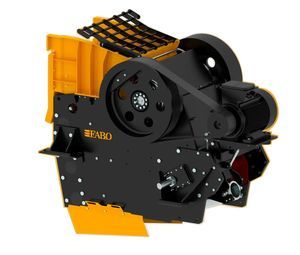

Bolted Type Jaw Crusher Parts

• 1 - Fixed Body: Fixed body protected against abrasion and heavy impacts
• 2 - Pitman: Opening adjustable via hydraulic system
• 3 - Linings: Wear protection linings bolted to the crusher body for easy replacement and maintenance
• 4 - Flywheels: High-speed flywheels provide maximum capacity; made of SFERO casting
• 5 - Eccentric Shaft Group: Enables pitman motion; bearings fitted with heat-sensor protection
• 6 - Tensioner Assembly: System for changing pitman opening; operable hydraulically by personnel

Notes
Intended for primary crushing in quarry operations and for hard, abrasive stones. Design focuses on durability, high performance and ease of maintenance.

Technical specifications

• Model / Series: CLK 11-60
• Design: Bolted frame jaw crusher
• Maximum feeding: 600 mm
• Motor power: 90 kW
• Pitman: Hydraulically adjustable opening
• Flywheels: SFERO casting for high-speed capacity
• Eccentric shaft group: Enables pitman motion; bearings with heat-sensor protection
• Linings: Bolt-fixed replaceable linings for wear protection
• Tensioner: Hydraulic tensioner assembly for pitman opening adjustment
• Intended materials: Hard and abrasive materials (e.g., basalt, granite)
