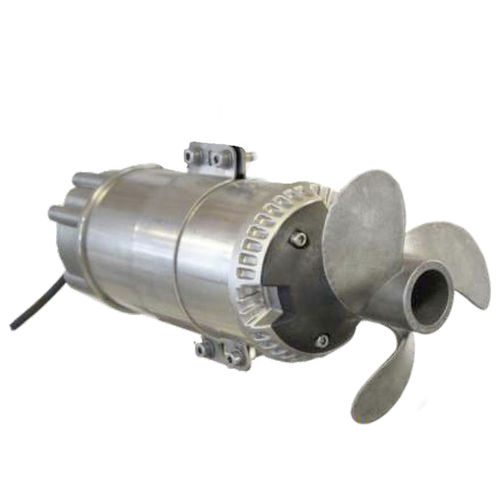

Propeller agitator XM18B471T1-6T6LA4
for liquidsfor sludge

Propeller agitator - XM18B471T1-6T6LA4 - FAGGIOLATI PUMPS - for liquids / for sludge
Propeller agitator - XM18B471T1-6T6LA4 - FAGGIOLATI PUMPS - for liquids / for sludge
Add to favorites
Compare this product
Go to the FAGGIOLATI PUMPS website for more information

Characteristics

Technology
propeller
Product type
for liquids
Applications
for sludge
Engine power

1.3 kW, 1.8 kW
(1.77 hp, 2.45 hp)

Empty weight

30 kg
(66.1 lb)

Description

Impeller Propeller Cooling By surrounding fluid Electric motor Watertight, suitable for VFD Protection IP 68 Starting Direct Power supply 3ph 400V-50Hz Rotation speed 1401 RPM Insulation class Classe H Tropicalizzato Duty S1 Continuous Electric Cable N-Neoprene submersible, length 10 m Mechanical seal shaft Double Mechanical Liquid temperature < 40 °C Surface treatment - Materials Pump casing Stainless Steel AISI 316L Shaft Stainless Steel AISI 316L Impeller Stainless Steel AISI 316L Mechanical seal motor Ceramic/Graphite Mechanical seal impeller Silicon Carbide/Silicon Carbide/Viton Screws A4 Class AISI 316 O-rings Viton Bearings Ball Bearings, life lubricated
