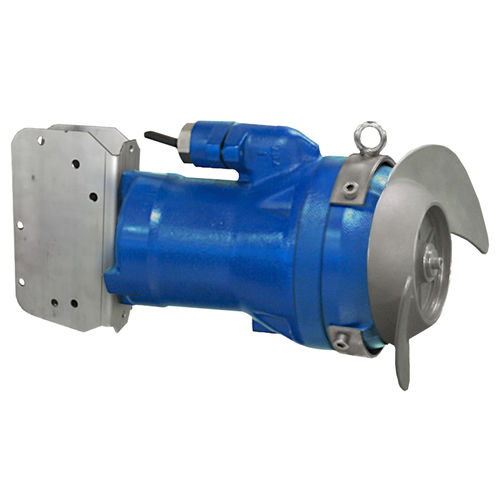

Propeller agitator GM30A609T1-4T6KA0

for liquidsfor sludgesubmersible

Impeller Propeller Cooling By surrounding fluid Electric motor Watertight, suitable for VFD Protection IP 68 Starting Direct Power supply 3ph 400V-50Hz Rotation speed 931 RPM Insulation class Classe H Duty S1 Continuous Electric Cable N-Neoprene submersible, length 10 m Mechanical seal shaft Double Mechanical Liquid temperature < 40 °C Surface treatment Epoxy painting Materials Pump casing Cast Iron EN-GJL-250 Shaft DUPLEX ASTM A890 gr. 4A UNS 31803 SAF 2205 Impeller Stainless Steel AISI 316 Mechanical seal motor Ceramic/Graphite Mechanical seal impeller Silicon Carbide/Silicon Carbide Screws A4 Class AISI 316 O-rings Nitrile Bearings Ball Bearings, life lubricated
