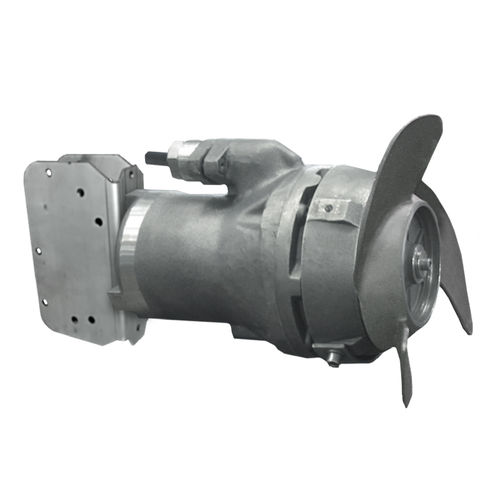

Propeller agitator XM30B610R1-6T6LA5
for liquidsfor sludgestainless steel

Propeller agitator - XM30B610R1-6T6LA5 - FAGGIOLATI PUMPS - for liquids / for sludge / stainless steel
Propeller agitator - XM30B610R1-6T6LA5 - FAGGIOLATI PUMPS - for liquids / for sludge / stainless steel
Add to favorites
Compare this product
Go to the FAGGIOLATI PUMPS website for more information

Characteristics

Technology
propeller
Product type
for liquids
Applications
for sludge
Other characteristics
stainless steel, submersible, double
Engine power

2.5 kW, 3.2 kW
(3.4 hp, 4.35 hp)

Empty weight

60 kg
(132.3 lb)

Description

Impeller Propeller Cooling By surrounding fluid Electric motor Watertight, suitable for VFD Protection IP 68 Starting Direct Power supply 3ph 400/690V-50Hz Rotation speed 931 RPM Insulation class Classe H Tropicalizzato Duty S1 Continuous Electric Cable N-Neoprene submersible, length 10 m Mechanical seal shaft Double Mechanical Liquid temperature < 40 °C Surface treatment - Materials Pump casing Stainless Steel AISI 316L Shaft DUPLEX ASTM A890 gr. 4A UNS 31803 SAF 2205 Impeller Stainless Steel AISI 316L Mechanical seal motor Ceramic/Graphite Mechanical seal impeller Silicon Carbide/Silicon Carbide/Viton Screws A4 Class AISI 316 O-rings Viton Bearings Ball Bearings, life lubricated
