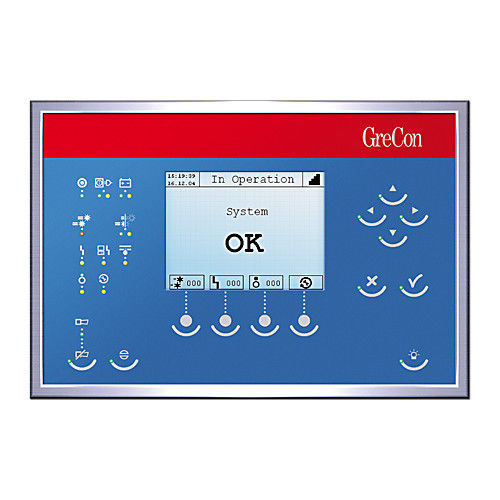

Fire detection and alarm unit CC 5000

fire detection and alarm unit
fire detection and alarm unit
Add to favorites
Compare this product


Description

For standard applications. Detection – control - extinguishment Controle console for the evaluation of signals of spark detectors, for automatic triggering of extinguishment devices and alarm devices. Specifications Types: CC 5001, CC 5002, CC 5004, CC 5016, CC 5036 (Version with TOUCH display possible) Number of detector lines: max. 36 Convertible to the potentially explosive area: Yes System extendable: No (CC 5001, CC 5002, CC 5004), Yes (CC 5016, CC 5036) Housing: Wall mounted housing 1, Wall mounted housing 2, Cabinet 3 Power drawn max.: approx. 90 VA (CC 5001, CC 5002, CC 5004), approx. 380 VA (CC 5016), approx. 760 VA (CC 5036) Power failure bridging time with full capacity: 4 h Operating voltage: 95 - 265 V at 47 - 63 Hz Protection: 5 AT Protection class: IP 55 Ambient temperature, operation: +5 °C - +40 °C Requirements for the installation site: Dry, vibration-free
