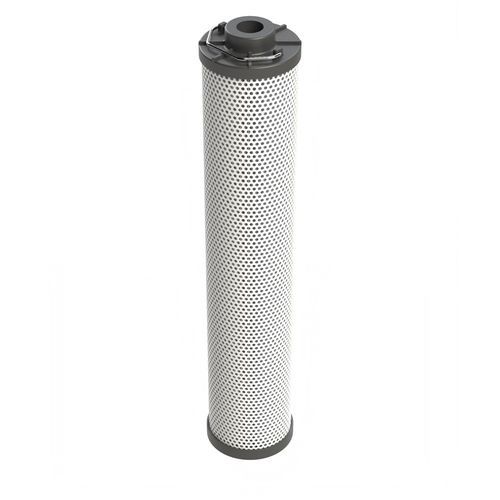

Oil filter R-0480-A10-NH-A-B6hydrauliccartridge
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic, oil
- Filtration element
- cartridge
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 20 bar
(290.075 psi)- Filtration size
12 µm
Description
Media Inorganic microfibers
Flow direction Out-In
By-pass 6 bar [87 psi]
Gasket NBR
Technical data
A Øe: 73 mm [2,87 inch]
B Øe: 73 mm [2,87 inch]
C Øi: 34,2 mm [1,35 inch]
D Øe: 36 mm [1,42 inch]
E H: 384,5 mm [15,14 inch]
Catalogs
No catalogs are available for this product.
See all of FAI FILTRI‘s catalogsOther FAI FILTRI products
Microfiltration for Electrical Discharge Machining (EDM)
