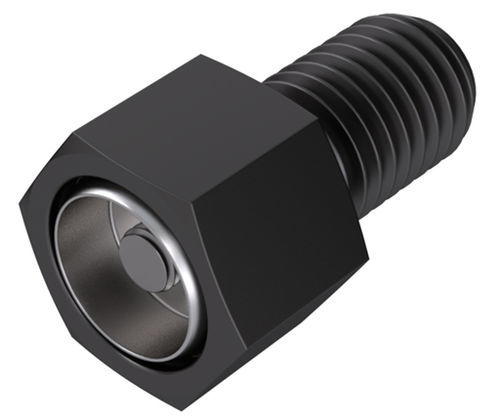

Self-aligning pad BUH-0370

The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter. Hex : 5/8 in. Height Head: 1/2 in. Length Thread: 1/2 in. Thread External: 3/8-16 Hex Internal: 1/8 in. Swivel : 20 Degrees. Standoff : 1/8 in. Standoff : 1/4 in. Diameter Ball: 1/2 in. Diameter Replaceable Pad: 3/8 in. Rating Load: 3,446 lbs.
