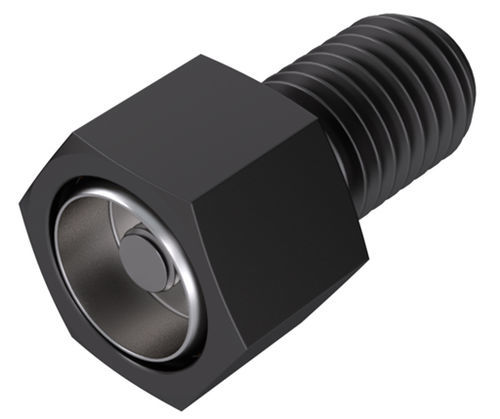

Self-aligning pad MBUH-10015

The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter. Hex External - Flat: 17 mm. Height Head: 13 mm. Length Thread: 15 mm. Thread External: M10x1.5 Hex Internal - Flat: 3 mm. Degree Swivel: 20 Degrees. Standoff : 4 mm. Standoff : 6 mm. Diameter Ball: 13 mm. Diameter Replaceable Pad: 10 mm. Rating Load: 4,194 lbs.
