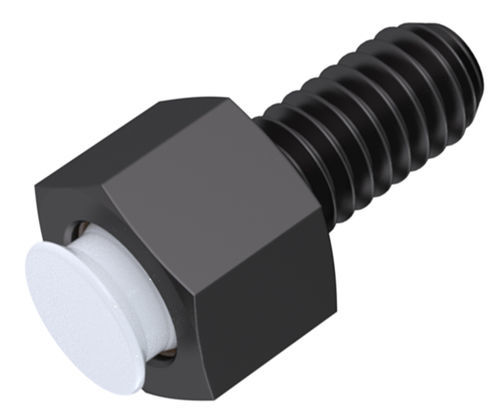

Self-aligning pad MBUH-06012-DC

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Diameter Overall: 10 mm. Length Body: 8 mm. Length Thread: 12 mm. Diameter Contact Surface: 8 mm. Height Standoff: 2 mm. Thread External: M6x1.0 Degree Swivel: 28 Degrees. Hex Internal - Flat: — lbs. Diameter Ball: 7 mm. Part No. Ball
