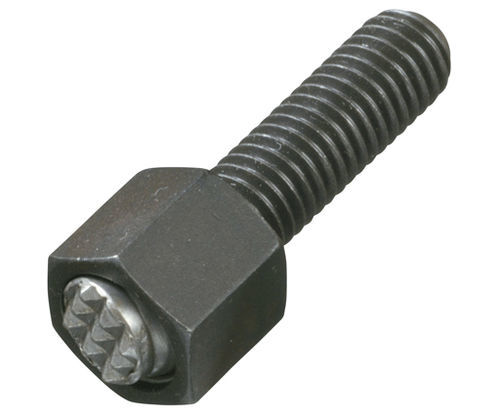

Self-aligning pad MBUH-06012-S

The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Hex External - Flat: 10 mm. Height Head: 8 mm. Length Thread: 12 mm. Diameter Contact Surface: 6 mm. Height Standoff: 1.5 mm. Thread External: M6x1.0 Degree Swivel: 28 Degrees. Hex Internal - Flat: — mm. Diameter Ball: 7 mm. Part No. Ball Only: MBUB-070-S Pattern Tooth: SF Rating Load: 2,061 lbs.
