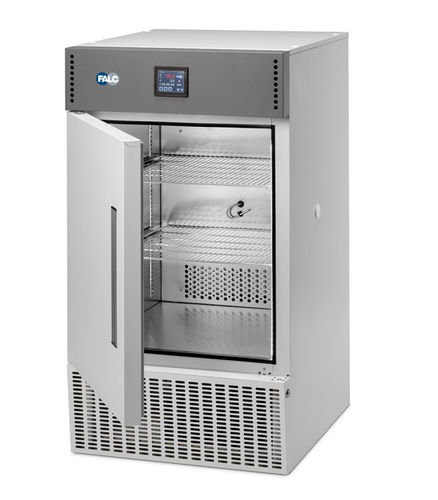

Tissue culture incubator ICT-CR 100

laboratoryfor cell culturesfor bacteria cultures

Overview
Refrigerated incubator ICT-CR 100 (100 L) provides a controlled low-temperature environment for cell, tissue and microbiological cultures. Designed for laboratory and clinical applications requiring temperatures below ambient, the unit integrates refrigeration with precision control and data logging for routine and programmable processes.

Key features

• Forced ventilation for homogeneous temperature distribution
• External steel structure coated with epoxy paint
• Internal chamber in stainless steel 18/8
• Digital temperature control and digital timer
• Programmable start/stop (day/hour)
• Calibration report provided with Accredia LAT certified sample instrument
• Two side ports Ø40 mm for probes or thermometers
• Working temperature range: 0–80°C
• Security class: 3.1
• Manual chimney opening
• Key lock on the door
• Programmable with up to 20 ramps and 8 different temperature/time steps
• USB port for data download and software monitoring

Data sheet

• Gas type: R290
• Usable internal dimensions (WxDxH): 521 x 535 x 575 mm
• External dimensions (WxDxH): 621 x 685 x 1125 mm
• Item / SKU: 720.2070.92
• Working temperature: 0–80°C
• Minimum temperature: 0°C
• Maximum temperature: 80°C
• Resolution: 0.1 °C
• Racks included: 2 (maximum: 4)
• Power: 1200 W; Supply: 220/240 V ~ 50/60 Hz
• Weight: 82 kg
• Protection class: IP 42
• Capacity: 100 L
• Maximum supported item weight: 60 kg
• Maximum load per shelf: 15 kg

Technical specifications

• Model: ICT-CR 100
• Capacity: 100 L
• Working temperature range: 0–80°C
• Temperature resolution: 0.1 °C
• Temperature accuracy: ±0.4°C at 4°C, 22°C and 37°C; ±0.8°C at 60°C
• Digital timer: 99:59:59 or ∞
• Programmable: up to 20 ramps, up to 8 temperature/time steps
• Ventilation: forced
• Construction: external epoxy-painted steel; internal stainless steel 18/8
• Calibration: report with Accredia LAT certified sample instrument
• Probe ports: 2 side holes Ø40 mm
• Door: manual chimney opening and key lock
• Data: USB port for download; software monitoring supported
• Gas: R290
• Dimensions (usable WxDxH): 521 x 535 x 575 mm; (external WxDxH): 621 x 685 x 1125 mm
• Electrical: 1200 W; 220/240 V ~ 50/60 Hz
• Weight: 82 kg
• SKU: 720.2070.92
