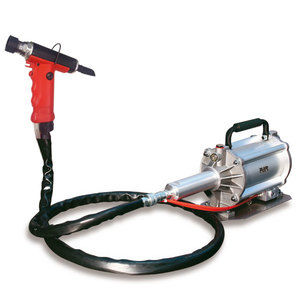

FHU 5000, the hydro pneumatic tool for Lockbolts and Structural Rivets with booster power apart.
The weight in the operator’s hand is just over 1 kg and its thinner and lighter hose type allows more freedom of movement when setting the rivets with one hand. The load on the operator’s hand is now reduced to such a level that the prolonged use of the tool causes a limited distress on operator, thus making FHU 5000 ideal for prolonged use in assembly lines.
The tool is sold without heads to leave absolute freedom of choice on the accessories to mount according to the specific use. Its design accepts, however, a wide range of heads which can be quickly & easily changed to suit rivets and lockbolts from most manufacturers.
• Working pressure 6-7 BAR
• Min. int. diam. of the compressed air feeding hose ø min.= 8 mm
• Max free air consumption per cycle 10,9 Nl
• Maximum force 6 BAR - 21060 N
• Stroke 24 mm
• Gun 1,300 Kg
• Weight 7,400 Kg
