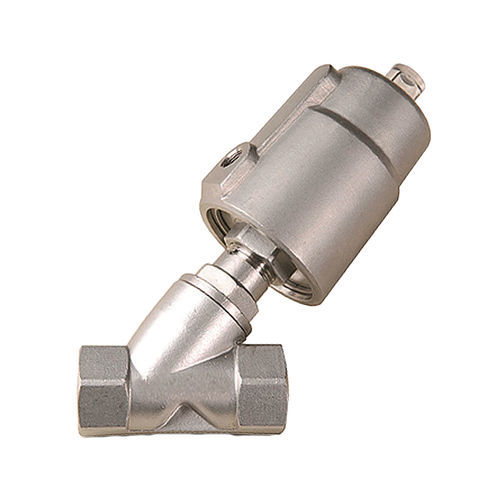

Globe valve E seriespneumatically-operatedfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated
- Media
- for water, for oil, for air, for steam
- Body
- threaded, weld, welded, Y
- Material
- PTFE, stainless steel
- Fluid specification
- for corrosive fluids
- Associated function
- reducing
- Other characteristics
- for aggressive media
- DN
Max.: 65 mm
(2.559 in)Min.: 10 mm
(0.394 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -10 °C
(14 °F)
Description
Farbo presents a new pneumatic globe valves series. The body in stainless steel makes new valves suitable for all applications which require aggressive fluids and performances up to 200° C and 16 bar working pressure. Y-type shape enlarges the flowing section and allows to raise the flux by 30%, reducing the pressure drop.
Available in 2 versions: ECX with body and stem in AISI 304 and EAX with body and stem in AISI 316, particularly corrosion resistant, both threaded up to 2-1/2" or welded up to DN65. Seals in PTFE help the stem adjust and garantee a long working life without maintenance.
